The YRG162 Series is a high-performance reduction gearbox specifically engineered for A00-segment micro electric vehicles. Designed for mid-torque and mid-speed applications, this compact and robust unit serves as the core transmission component for a new generation of efficient, quiet, and reliable electric mobility solutions. Its optimized design ensures seamless integration into micro electric rear axle drive systems.

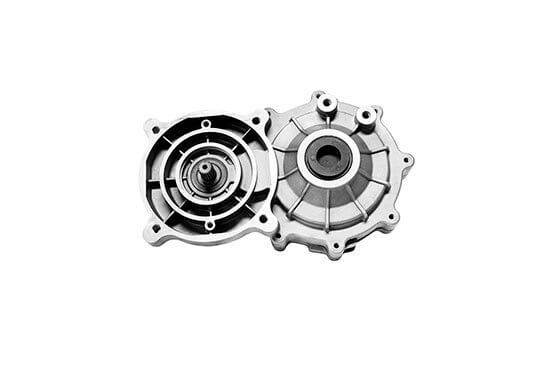

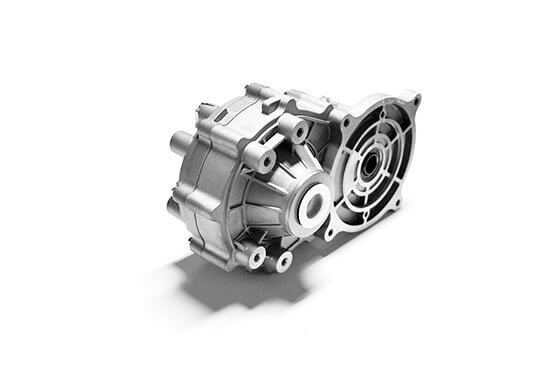

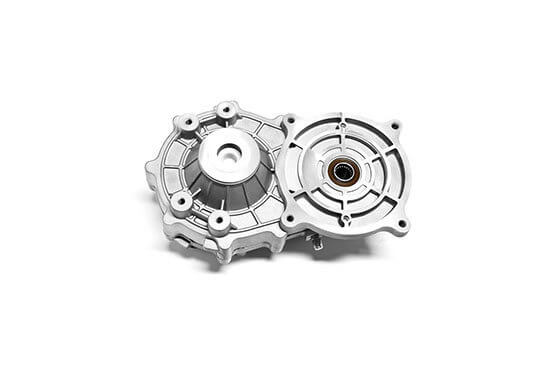

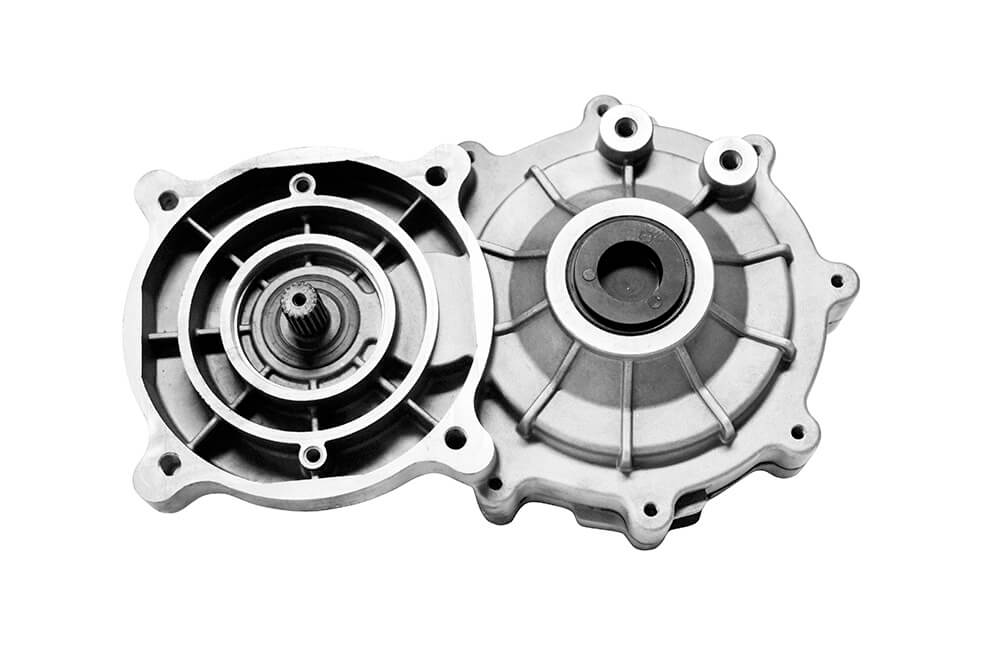

YRG162 Series New Energy Vehicle Reduction Gearbox
Product Overview
The YRG162 Series is a high-performance reduction gearbox specifically engineered for A00-segment micro electric vehicles. Designed for mid-torque and mid-speed applications, this compact and robust unit serves as the core transmission component for a new generation of efficient, quiet, and reliable electric mobility solutions. Its optimized design ensures seamless integration into micro electric rear axle drive systems.
Core Features & Advantages
l Compact & Robust Construction
Features a two-stage parallel shaft design, integrated with a final reduction differential, creating a highly compact and complete drive system.
The housing is crafted from high-strength ductile iron, ensuring exceptional durability and structural integrity to withstand rigorous operating conditions.
l Superior Gear Technology for Quiet Operation
Gears employ a fine-tooth profile design and helical tooth engagement for smoother power transmission.
Precision grinding guarantees high gear accuracy, resulting in significantly reuced noise and vibration for a quieter cabin experience.
l Reliable High-Speed Sealing
The high-speed shaft is sealed with premium FKM (Fluorocarbon Rubber) sealing rings, offering excellent resistance to heat and wear.
This ensures outstanding sealing performance and long-term reliability, even during sustained high-speed operation.
l Wide Compatibility
Engineered to be paired with electric motors in the 5.5 kW to 15 kW power range.
An ideal, ready-to-integrate solution for a variety of micro electric vehicle platforms.
Ideal Applications
The YRG162 Series is the perfect drive solution for:
l Micro Electric Passenger Cars (A00-segment)
l Low-Speed Electric Vehicles (LSEVs) & Site-Specific Vehicles
l Police Patrol Carts
l Tourist Sightseeing Carts
l Various micro electric four-wheel vehicles
Technical Specifications
Model | YRG162-00 |
Basic Structure | Two-stage parallel shaft structure with integrated final reduction and differential. |
Gear Ratio | 7.67:1 / 10.33:1 / 12.6:1 / 14.56: 1 |
Rated Input Torque | 30N.m |
Maximum Input Torque | 100N.m |
Rated Input Speed | 3000r/min |
Maximum Input Speed | 6000r/min |
Center Distance Between Two Shafts | 162mm |
Product Weight | 12KG |
Dimensions (L*W*H) | 330*198*198mm |
Input Spline Specification | External Spline, m1, z18, α20°, JIS D2001 |
Output Spline Specification | Internal Spline, m1, z22, α20°, JIS D2001 |
Compatible Range | This product is suitable for motors with a power range of 3KW--5.5KW, designed for micro electric vehicles with rear axle drive structure. Applicable to various micro electric four-wheel vehicles, site vehicles, police patrol vehicles, and tourist sightseeing cars. |
