The ZLC series is a vertical soft tooth surface reducer specifically designed for the trolley travel mechanisms of bridge and gantry cranes. Featuring a compact vertical mounting structure, it perfectly matches the crane's wheel assembly, directly driving the wheels. It is a core transmission solution for efficient and smooth movement in lifting and transportation equipment.

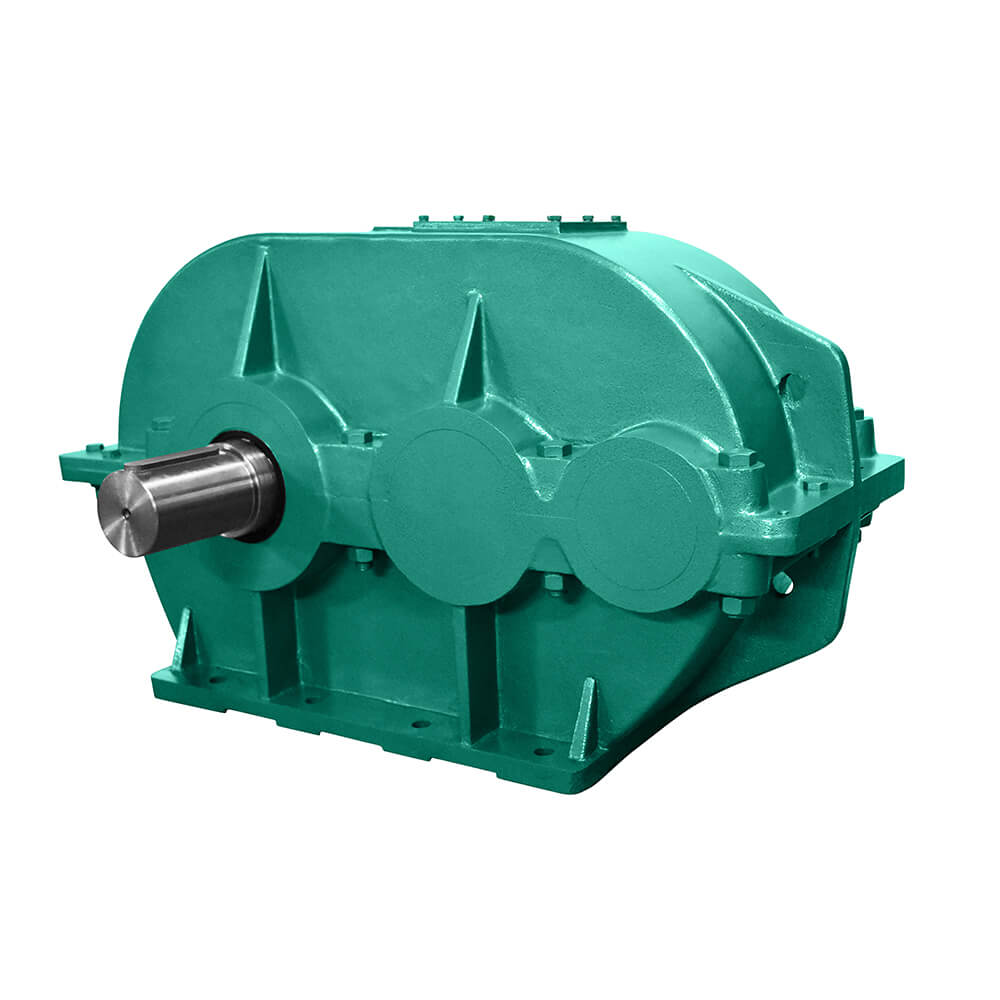

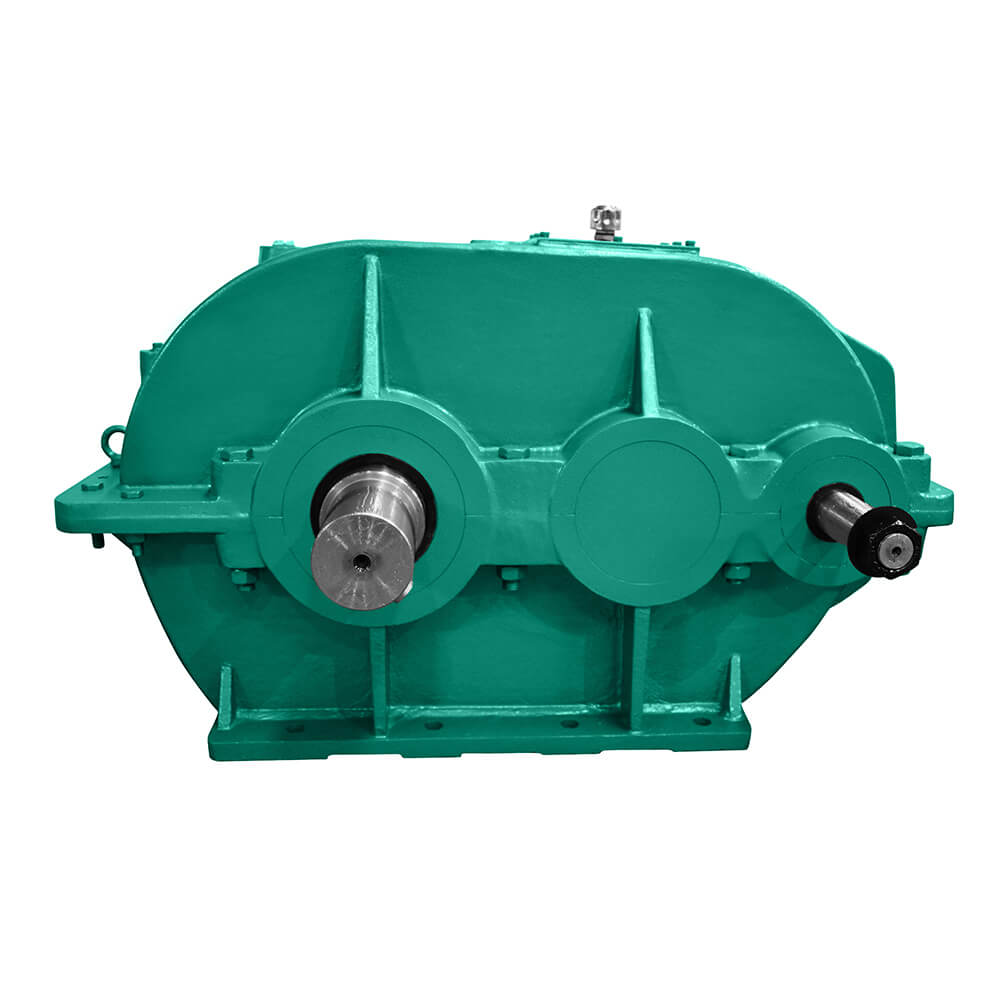

ZLC Vertical Soft Tooth Surface Reducer
Description
The ZLC series is a vertical soft tooth surface reducer specifically designed for the trolley travel mechanisms of bridge and gantry cranes. Featuring a compact vertical mounting structure, it perfectly matches the crane's wheel assembly, directly driving the wheels. It is a core transmission solution for efficient and smooth movement in lifting and transportation equipment. Its proven and reliable design ensures long-term stable operation under frequent starts and stops and moderate to high shock loads.
Core Design and Advantages
l Optimized for Cranes
The vertical structure is installed directly within the trolley frame, significantly saving installation space and enabling a short drive chain and a streamlined layout.
Specifically tuned for the travel mechanism, it ensures smooth starting and accurate positioning, ensuring safe and efficient crane operation.
l Powerful and Reliable Transmission Core
The gears are made of high-quality alloy steel and have undergone a quenching and tempering process to achieve a soft tooth surface, combining excellent surface hardness with superior core toughness.
The soft tooth surface properties enable it to better withstand the shock and vibration caused by crane travel, preventing brittle fracture and extending gear service life.
l Excellent Mechanical Performance
The housing is constructed of high-strength cast iron, ensuring a sturdy structure and precise positioning of the gear shafts, ensuring smooth operation and low noise.
The vertical seal design effectively prevents lubricant leakage and is suitable for dusty industrial environments.
l Easy Maintenance and Cost-Effectiveness
As a classic soft-tooth reducer, the ZLC series offers excellent value for money, with a low initial investment.
The structural design facilitates inspection and maintenance, reducing ongoing maintenance costs, making it an ideal choice for cost-conscious users.
Typical Applications
The ZLC series reducers are primarily used in the travel drive mechanisms of the following equipment:
Bridge crane trolley and carriage travel mechanisms
Gantry crane trolley and carriage travel mechanisms
Other material handling equipment requiring vertical and compact installation
Selection Tips
When selecting a reducer, please provide key parameters such as the required output torque, gear ratio, mounting method, and wheel size.
Ensure that the reducer's output shaft configuration perfectly matches your wheel assembly or coupling. If you have special operating requirements (such as extreme ambient temperatures or explosion-proof requirements), please specify them in advance when selecting your model.
Why choose our ZLC series reducers?
Our ZLC series reducers maintain a classic design while rigorously controlling materials and manufacturing processes to ensure exceptional reliability in every unit. We offer not only standard models but also professional technical support and customized services tailored to your specific needs.
Contact us today to find the most reliable travel power for your lifting equipment!
