Electric Vehicle Rear Axle 162 Rear Axle

Product Overview

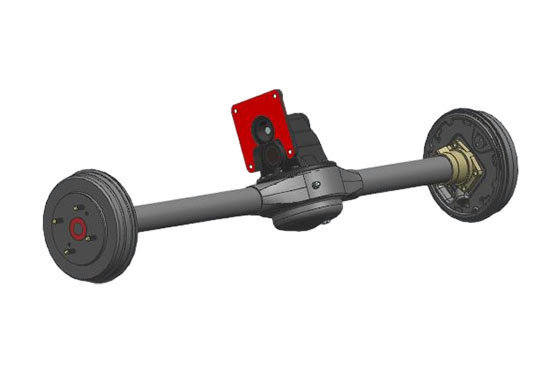

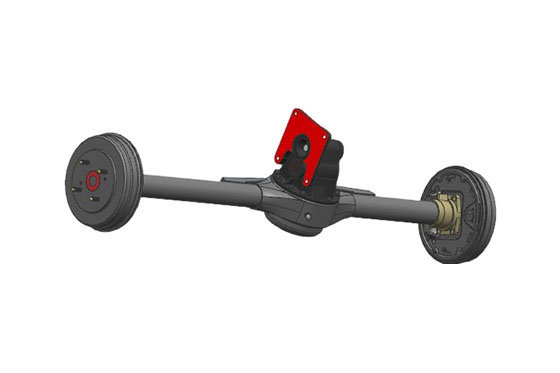

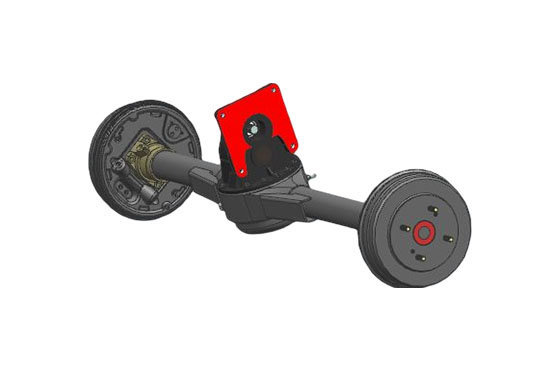

The 162 Series Light Electric Drive Rear Axle is an integrated drive solution specifically designed for new energy light vehicles. This product adopts a modular design concept, perfectly integrating the reduction mechanism, braking system, and load-bearing structure. It provides reliable and efficient power transmission and load-bearing functions for various types of light electric vehicles, making it an ideal drive platform choice for light electric vehicles.

Technical Features

l Drive System

Standardized input interface: compatible with 18-tooth motor output shaft

Flexible installation solutions: offers two or three mounting hole options

Multiple gear ratio options: four transmission ratio configurations: 7.96, 10.18, 11.8, and 12.4

Customization support: interface dimensions can be adjusted according to customer requirements

l Braking System

Dual specification drum brakes: 180mm and 220mm specifications available

Advanced disc brakes: optional high-performance disc brake system

Reliable braking assurance: ensures driving safety and stability

Performance Parameters

Rated load: 1500kg

Maximum speed: 80km/h

Optimized design: balances power performance and energy consumption economy

Application Fields

This product is widely applicable in the new energy light vehicle sector:

Electric freight tricycles

Specialized golf course vehicles

Electric shuttle buses

Urban logistics distribution vehicles

Tourist sightseeing vehicles

Other light special electric vehicles

Core Advantages

1. Integrated design: Combines drive, brake, and load-bearing functions into one system

2. Flexible configuration: Multiple gear ratios and braking solutions available

3. Strong load capacity: 1500kg rated load meets heavy-duty requirements

4. Comprehensive compatibility: Widely adaptable to various light electric vehicle types

5. Customization services: Supports personalized customization needs

6. Economical and durable: Optimized transmission efficiency and reliable structural design

We are committed to providing the most suitable rear axle solution for each customer. Welcome to consult our customization services according to your specific application requirements.
