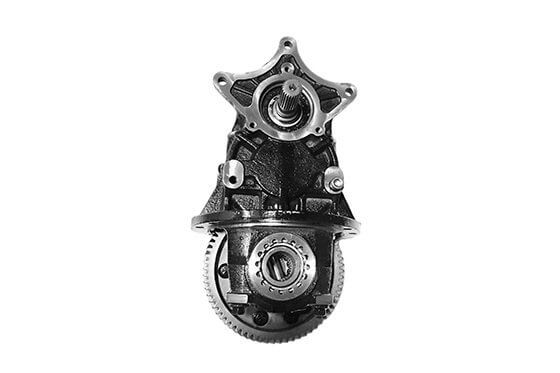

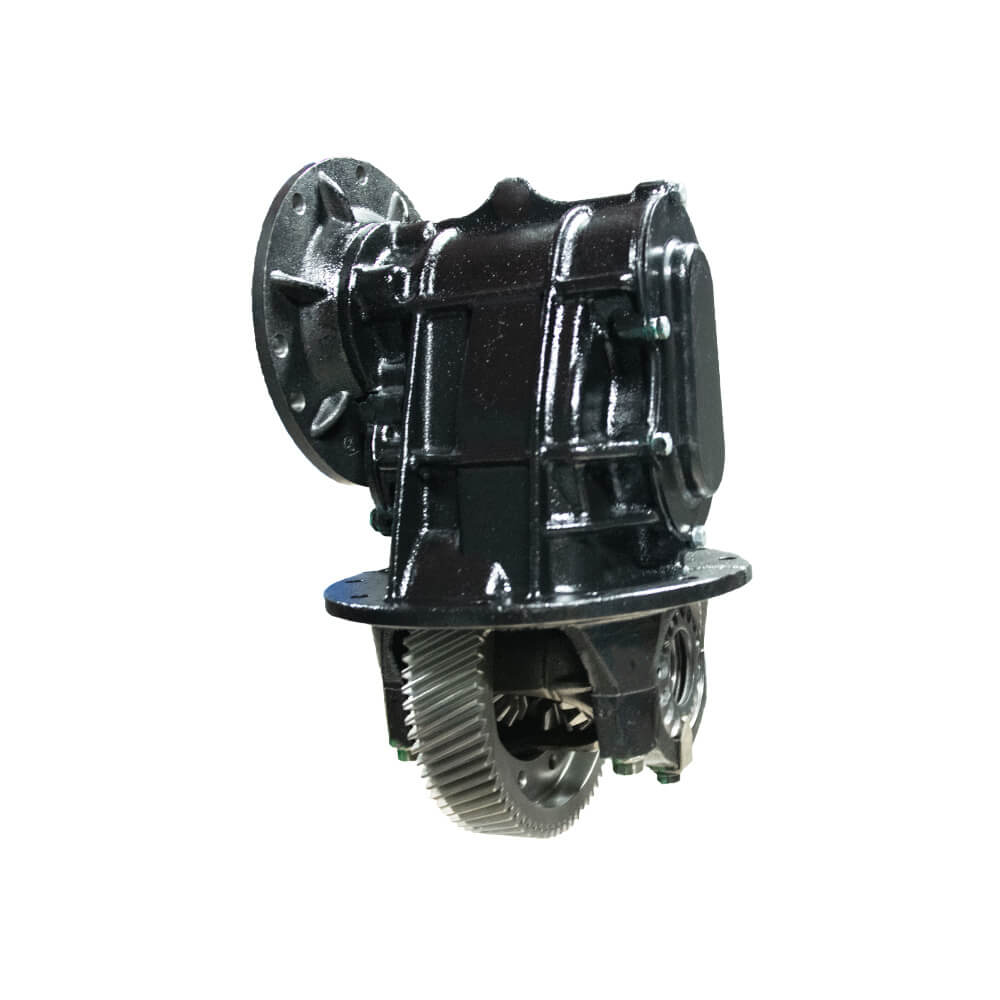

YRG206 Series Reduction Gearbox
Product Overview
The YRG206 series reduction gearbox is a high-performance power transmission solution specifically developed for new eneYRGy electric commercial vehicles, with particular suitability for urban and suburban logistics transportation scenarios. Featuring high-strength ductile iron housing and laYRGe overlap ratio gear design, it meets the demanding requirements of high-power, high-torque operating conditions, providing reliable and durable power transmission assurance for commercial electric vehicles.
Core Product Advantages
l High-Power & High-Torque Transmission
Rated input torque of 120N.m and maximum input torque of 270N.m, compatible with power requirements of medium and laYRGe electric commercial vehicles, easily handling heavy-duty transport conditions
l High-Strength Structural Design
Housing constructed from ductile iron material, ensuring structural strength and durability under heavy load conditions, extending service life
l Efficient & Quiet Transmission System
Gear pair employs constant meshing helical gear transmission with laYRGe overlap ratio optimization design, ensuring smooth operation, low noise, and high efficiency
l Reliable Sealing Guarantee
High-speed shaft oil seals utilize premium FKM fluor rubber sealing rings, resistant to high temperature and wear, ensuring durable sealing performance during high-speed operation
Applicable Vehicles
l New eneYRGy electric urban/suburban logistics vehicles
l LaYRGe electric vans
l Small electric trucks
l Other commercial electric transport vehicles
Technical Specifications
Model | YRG206-00 |
Basic Structure | Two-stage parallel shaft structure with integrated final reduction and differential. |
Gear Ratio | 12.94:1 / 14.02:1 |
Rated Input Torque | 120N.m |
Maximum Input Torque | 270N.m |
Rated Input Speed | 5000r/min |
Maximum Input Speed | 12000r/min |
Center Distance Between Two Shafts | 206mm |
Product Weight | 31KG |
Dimensions (L*W*H) | 239*239*380 MM |
Input Spline Specification | External Spline m1.25 z18 α30° GB/T3478.1 |
Output Spline Specification | Internal Spline m1 z29 α30° GB/T3478.1 |
Compatible Range | Suitable for micro rear axle drive structure new eneYRGy electric commercial vehicles; Applicable to laYRGe vans, mini trucks, and similar vehicles |
