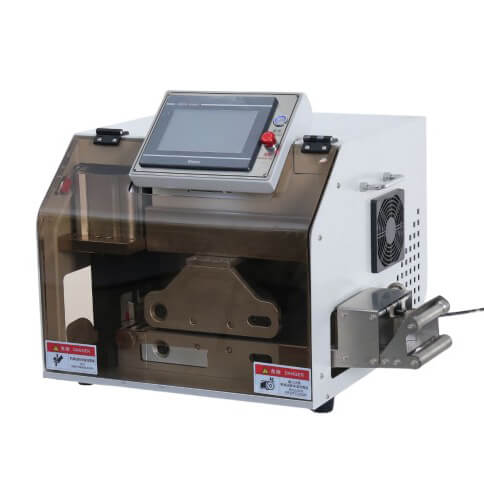

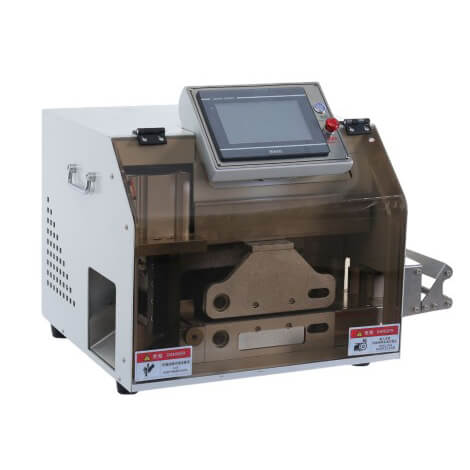

AC-375 Automatic Cutting Machine

PRODUCT DESCRIPTION

The AC-375 is a high-precision automatic tape cutting machine specifically optimized for processing crushable soft strip/tubular materials such as heat shrink tubing. It employs a unique belt-feeding system that gently flattens and steadily conveys the material during feeding, perfectly solving the common problems of rolling and inaccurate positioning associated with round soft tubes. This ensures stable and precise fixed-length cutting. With its compact structure and high efficiency, it is a dedicated solution for the high-volume cutting of heat shrink tubing, marker sleeves, and similar materials in the electronics, electrical appliance, and wire harness industries.

FEATURES

1. Designed for Crushable Materials: The core design targets deformable soft materials like heat shrink tubing. The feeding and cutting mechanisms work in concert to ensure material is fed and cut in a stable, moderately flattened state, resulting in clean cuts and eliminating length errors and processing difficulties caused by tube rolling.

2. High-Precision Belt-Feed System: Utilizes a flat belt feeding method with large contact area and even friction, ensuring smooth, slip-free conveyance. Combined with high-precision control, it achieves accurate feeding and cutting of extra-long materials (e.g., several meters) with superior feeding accuracy.

3. Stable and Reliable Cutting Unit: Features pneumatic cylinder-driven cutting with a stroke of 50mm, providing steady and sufficient downward force to ensure clean cuts even through layered materials, without stringing or crushing.

4. Wide Processing Capability: Not only handles tubular materials from φ1-φ30mm, but its unique blade holder design also allows for a maximum cutting width of 80mm. This enables processing of wider flat tapes or batch cutting of multiple tubes side-by-side, offering great flexibility.

5. Intelligent & Compact: Controlled by a PLC and HMI for intuitive operation. The compact chassis saves workspace and facilitates integration into production lines or workbenches.

SUITABLE MATERIALS

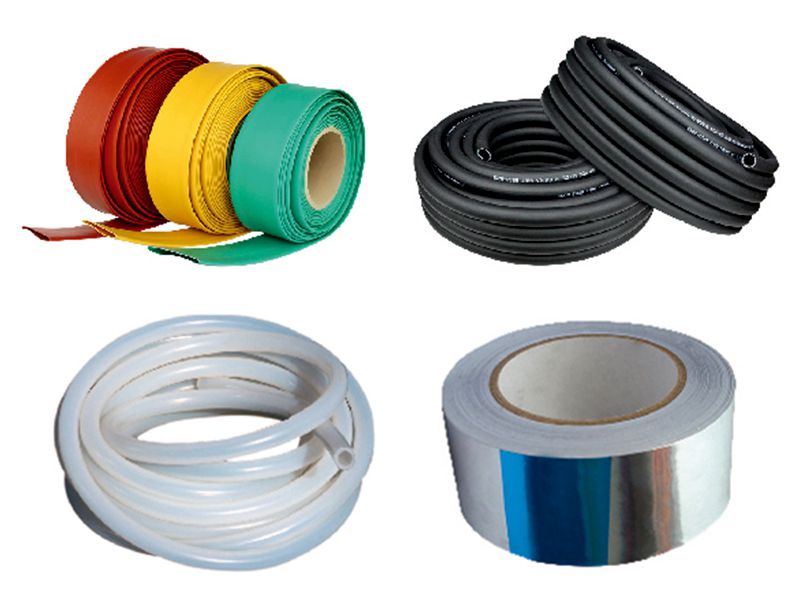

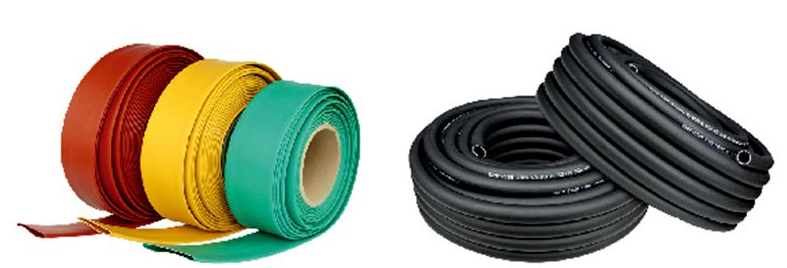

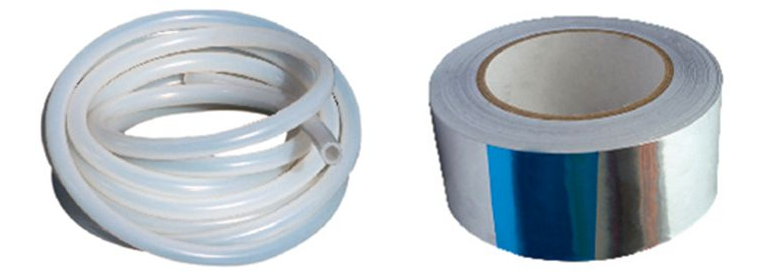

Primarily used for the fixed-length cutting of crushable soft insulating sleeves such as heat shrink tubing, marker sleeves, silicone tubing, and fiberglass sleeving. Widely applied in wire and cable processing, electronic component manufacturing, automotive wire harness production, and battery assembly. It is a professional equipment for enhancing the efficiency and precision of accessory material cutting.

TECHNICAL SPECIFICATIONS
