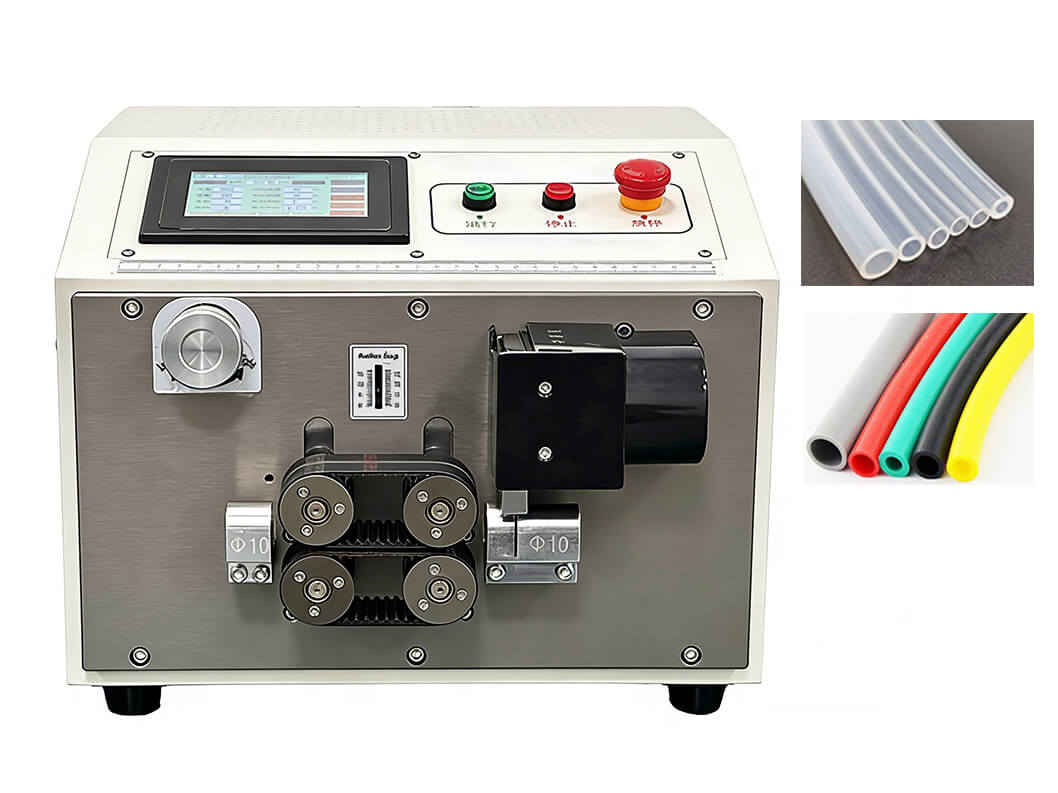

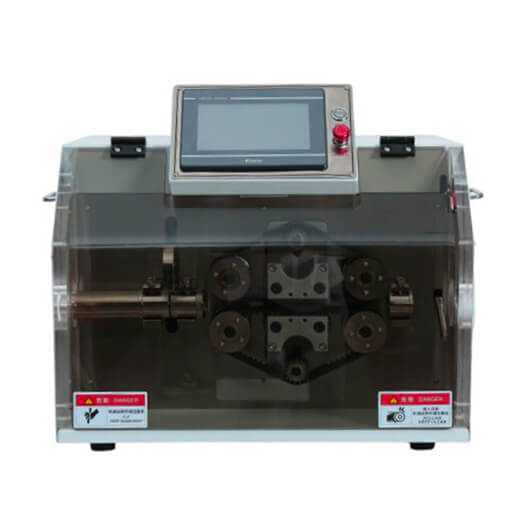

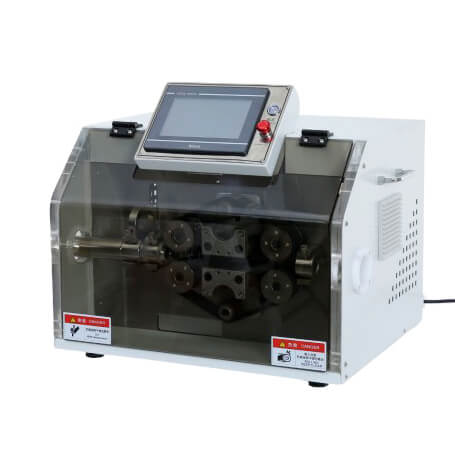

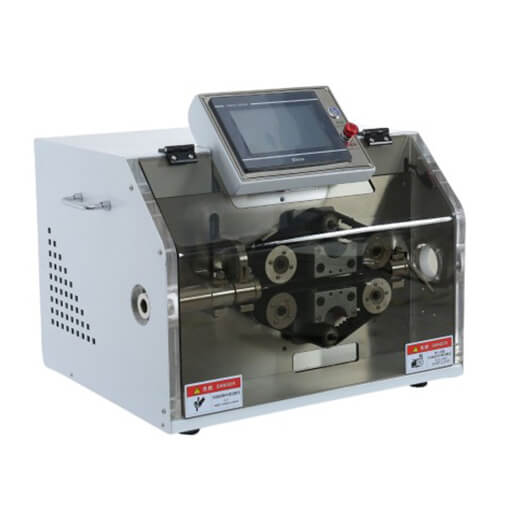

AC-330 Automatic Tube Cutting Machine

PRODUCT DESCRIPTION

AC-330 is a fully automatic tube cutting device equipped with an advanced PLC control system and an intuitive touchscreen HMI (Human-Machine Interface). It is specifically designed for the efficient and precise cutting of various corrugated tubes and other tubes. Integrating intelligent control with stable, high-performance cutting capability, it meets the fixed-length cutting requirements for tubes with diameters ranging from ø5mm to ø30mm (customizable up to ø45mm). It is an ideal solution for production line upgrades and automation transformation.

FEATURES

1. Intelligent Control System: Integrates a PLC and touchscreen HMI for intuitive parameter setting and easy operation. Supports program storage and recall, enabling stable and reliable automated production.

2. Efficient and Precise Cutting: Utilizes a motor-driven direct cutting mechanism for fast response. Cutting length tolerance is controlled within ±0.5%, ensuring dimensional consistency for every tube segment.

3. Powerful and Stable Performance: The 300W power motor delivers ample force, coupled with a 30mm cutting stroke, ensuring clean, burr-free cuts—particularly suitable for elastic corrugated tubes.

4. Flexible and Efficient Production: Maximum cutting speed reaches up to 60 pieces/minute (depending on length). The diameter range is customizable, offering adaptability for different batch sizes and specifications.

5. Robust and Compact Design: The machine dimensions are 580x470x500mm with a sturdy structure and a weight of approximately 70kg. Its compact footprint allows for easy integration into production lines.

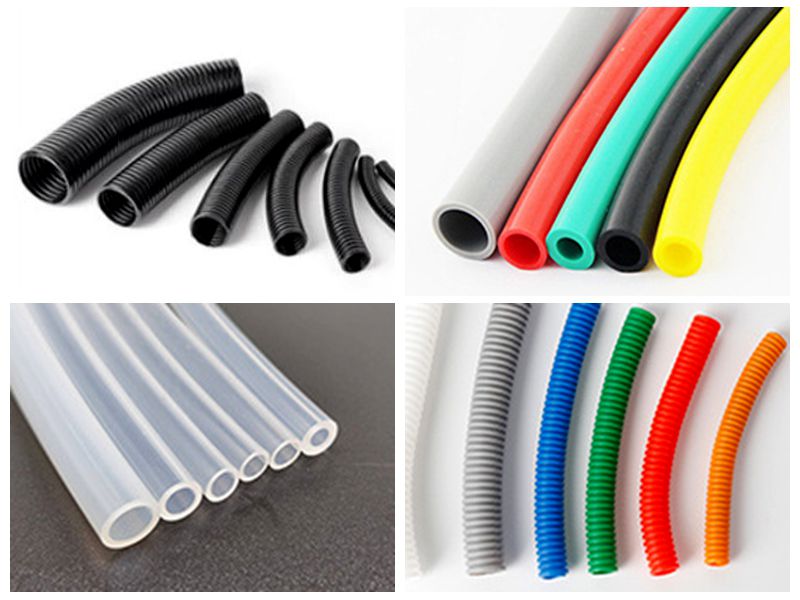

SUITABLE MATERIALS

Primarily designed for various corrugated tubes, also applicable for the fixed-length cutting of other plastic hoses, silicone tubes, and similar materials with comparable characteristics.

TECHNICAL SPECIFICATIONS
