WS-606L automatic computer wire stripping machine adopts caterpillar belt feeding structure, specially designed for processing silicone wire and soft wire, no damage and no deformation to wires. Equipped with 4.3-inch color touch screen for digital parameter setting, easy operation.

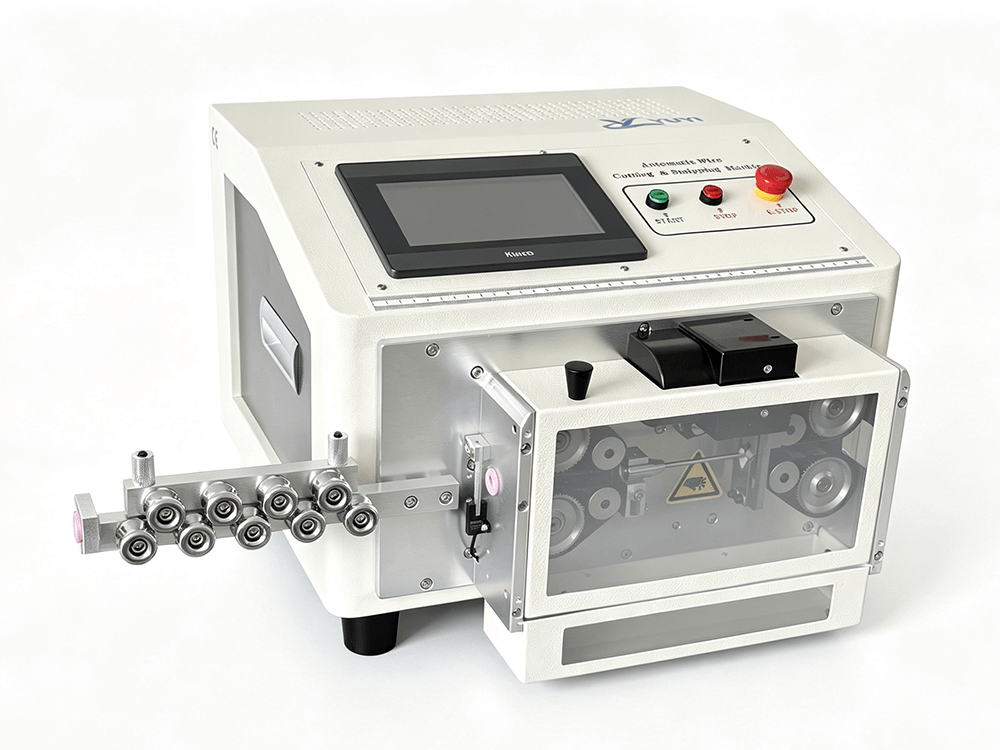

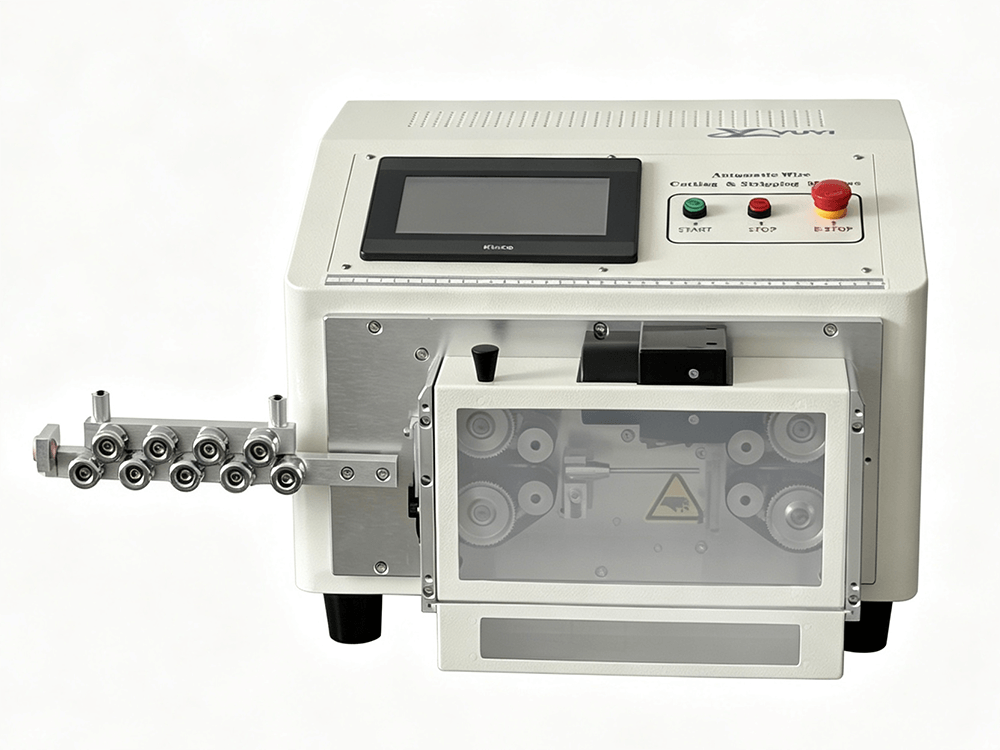

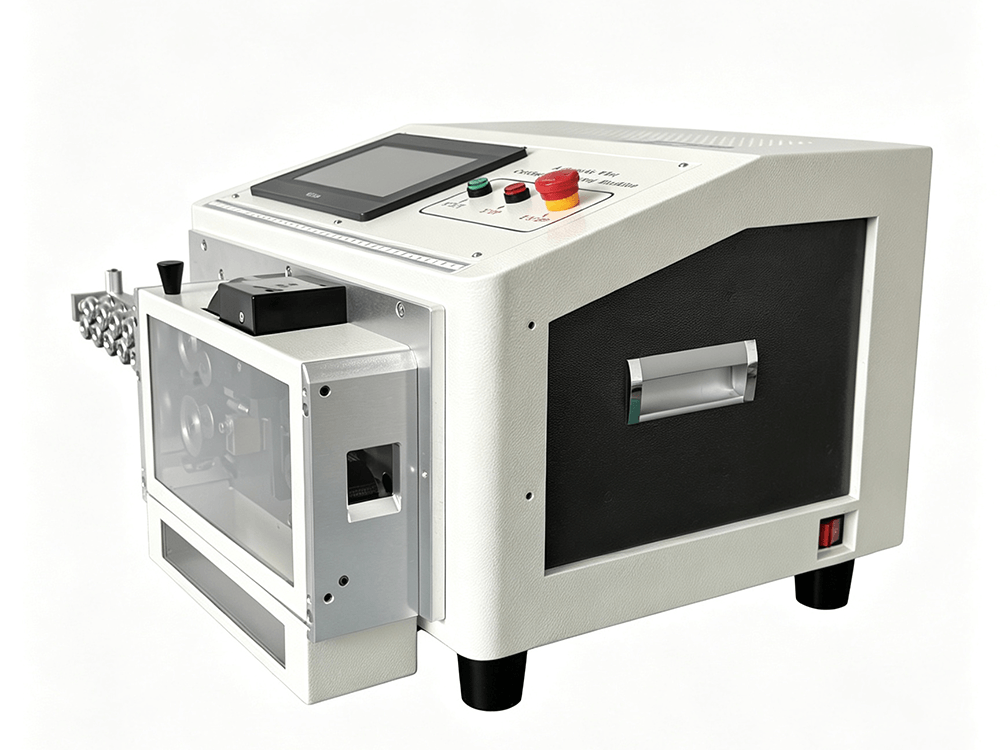

WS-606L Automatic Wire Cutting Stripping Machine
PRODUCT DESCRIPTION
WS-606L automatic computer wire stripping machine adopts caterpillar belt feeding structure, specially designed for processing silicone wire and soft wire, no damage and no deformation to wires. Equipped with 4.3-inch color touch screen for digital parameter setting, easy operation. Compact and delicate body, flexible for placement.
PRODUCT DESCRIPTION
l Full touch screen CNC control, digitally set wire total length, single-end and double-end stripping, simple and user-friendly.
l Exquisite round and compact design, small size, easy to place on workshop workbench.
l Support automatic wire feeding & discharging, timed start and jog adjustment functions.
l Built-in one-key correction for wire length error, ensuring high processing accuracy.
l Belt feeding with even pressure, perfect for silicone or Teflon wire without crushing or damaging the wire.
l Adopt high quality tungsten steel / high-speed steel blade for clean cutting; silent hybrid stepping motor with quiet operation and high positioning accuracy.
l Store 99 groups of production programs, support one-key copy and reading, custom name editing, convenient for model change.
TECHNICAL SPECIFICATIONS
Model | WS-606L (Belt Feeding) |
Power Supply | AC220V 50/60HZ |
Machine Dimension | L470mm×W465mm×H350mm |
Net Weight | 45kg |
Total Power | 680W |
Rated Power | 400W |
Processing Wire Range | 0.1-6mm² (AWG30#-10#) |
Cutting Length | 0.1-99999.9mm |
Front Stripping Length | 0.1-30mm |
Rear Stripping Length | 0.1-30mm |
Stripping Accuracy | 0.01mm |
Display | 4.3-inch Color Touch Screen |
Production Capacity | 2000-4500 pcs/h |
Blade Material | Tungsten Steel / High-Speed Steel |
