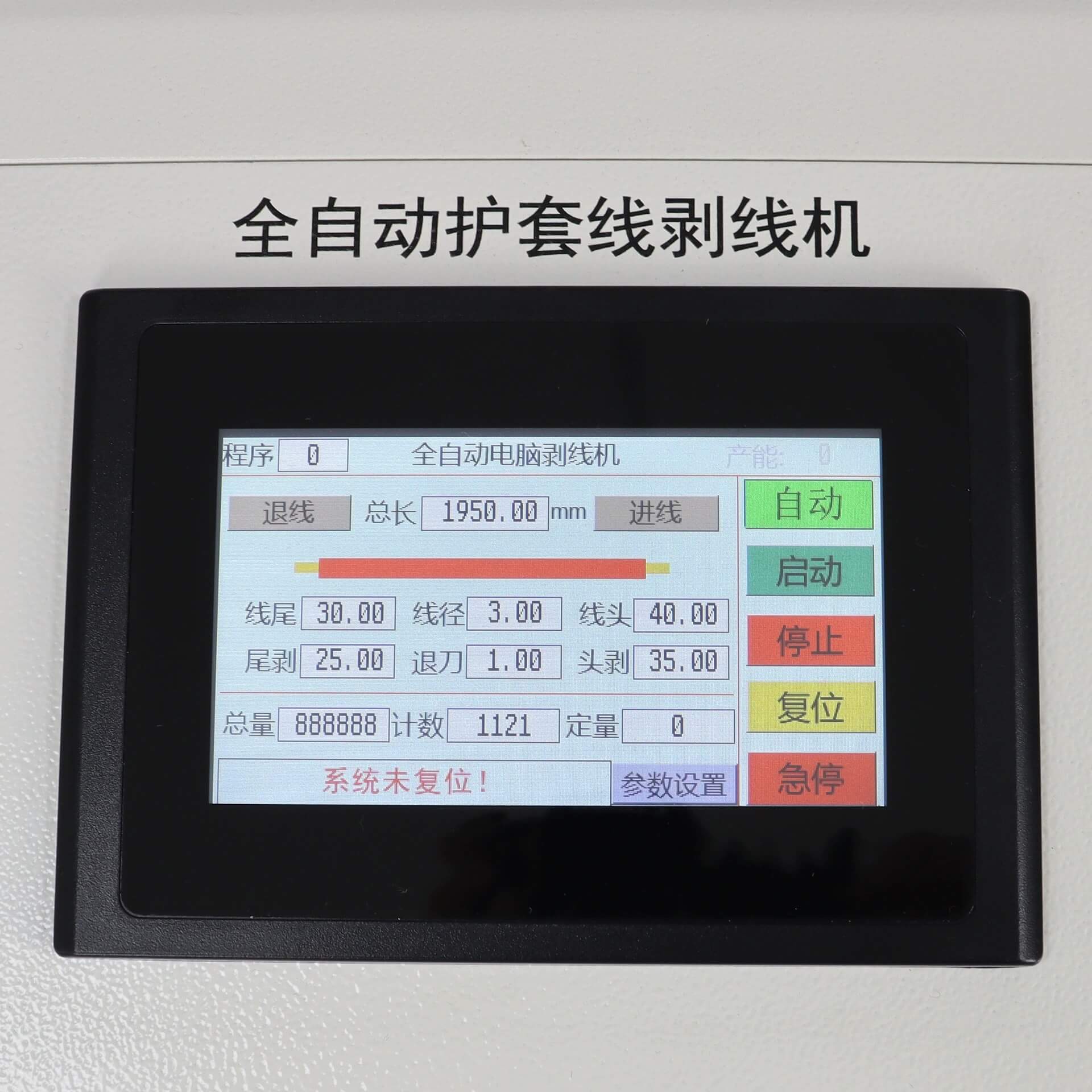

The WS-610 is a high-efficiency, fully automatic solution designed for wire diameter from 1-10mm, integrating cutting and both-end stripping in one cycle. Equipped with a 4.3-inch touchscreen and 100-program memory, making it an ideal precision tool for wiring harness production in electronics and appliance industries.
WS-610 Automatic Wire Cutting Stripping Machine
PRODUCT DESCRIPTION
The WS-610 is a high-efficiency, fully automatic solution designed for wire diameter from 1-10mm, integrating cutting and both-end stripping in one cycle. Equipped with a 4.3-inch touchscreen and 100-program memory, making it an ideal precision tool for wiring harness production in electronics and appliance industries.
TECHNICAL SPECIFICATIONS
Model | WS-610 |
Display | 4.3-inch Touchscreen LCD Display |
Stripping Range | φ1-φ10mm |
Cutting Length | 0.1mm - 99999.99mm |
Stripping Length | Front Strip: 0.1-250mm; Rear Strip: 0.1-70mm; |
Stripping Accuracy | 0.01 mm (via Silent Hybrid Stepper Motor) |
Blade Material | High-quality Tungsten Steel / High-Speed Steel |
Program Storage | 100 sets of data |
Productivity | 1500-3000 PCS/H (depending on length and wire size) |
Power Supply | AC 220V 50/60Hz 880W |
Air Supply | 0.5-0.8Mpa |
Weight | 38kg |
Dimensions | L565*W385*H370mm |
