TW-303X is a cost-effective traction type automatic tape winding machine for wire harness, cable and power cord processing. Adopting roller traction feeding, it prevents wire twisting and ensures stable wrapping. It supports full taping, spot taping and spacing taping with adjustable overlap and gap.

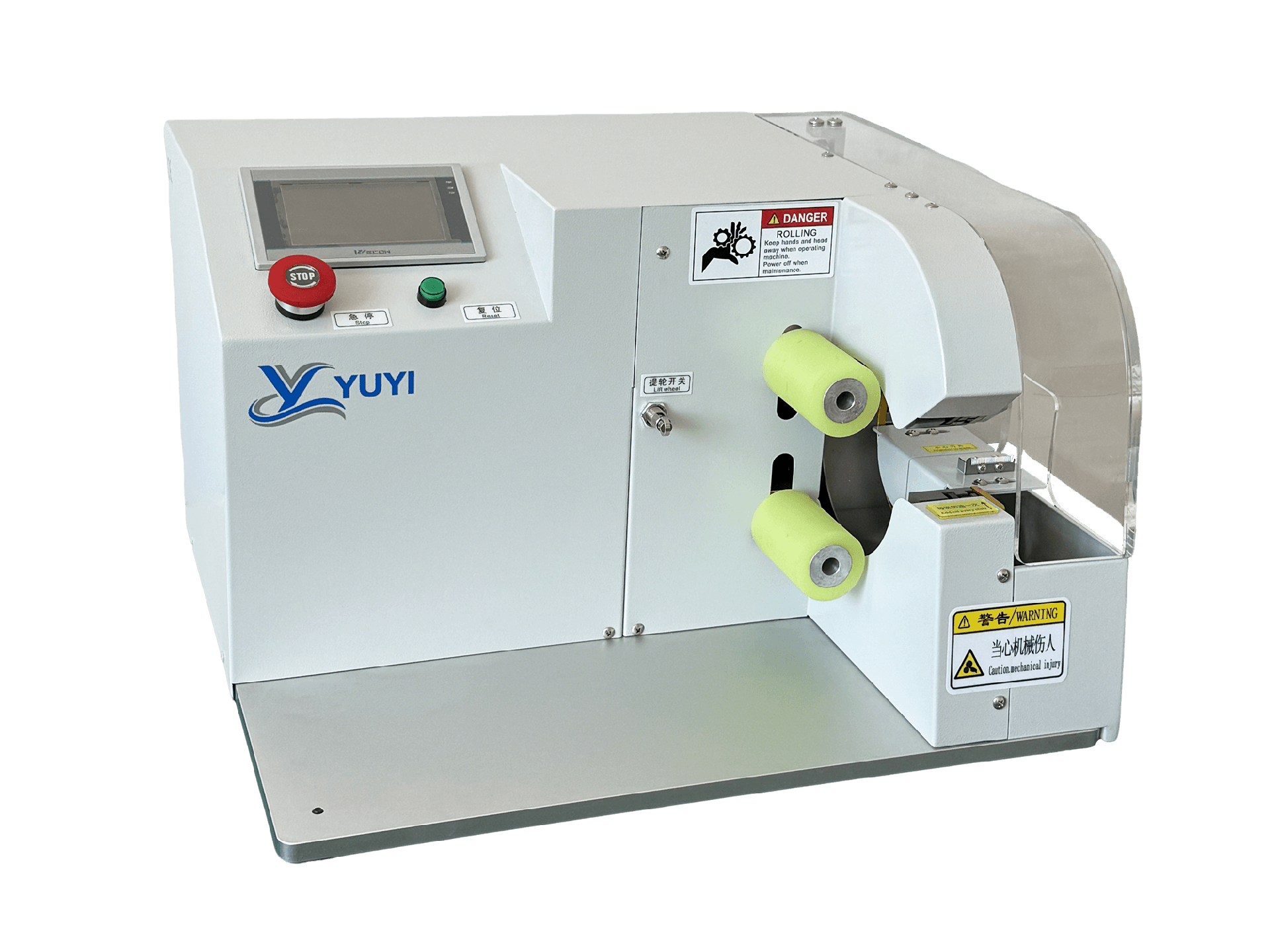

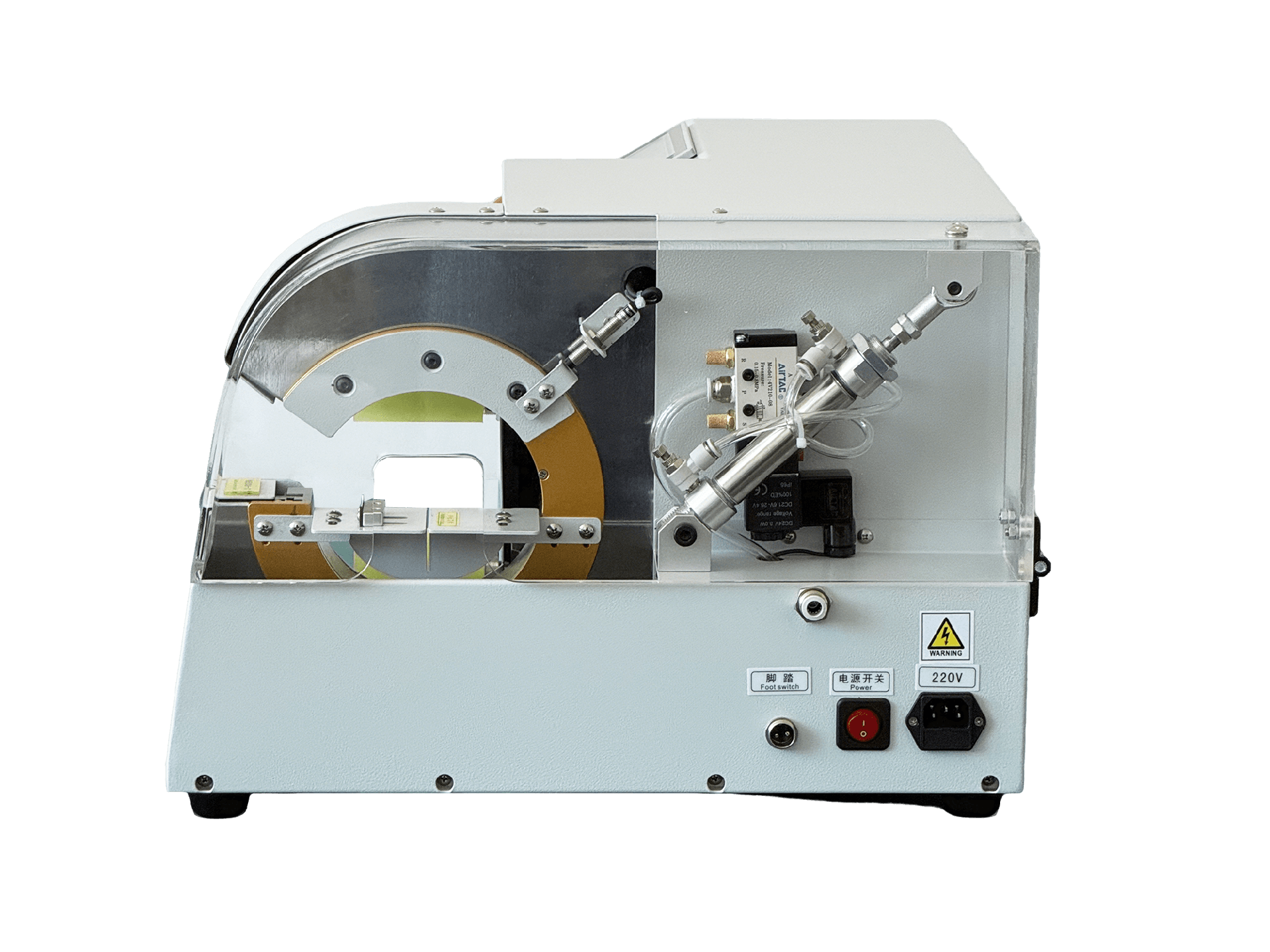

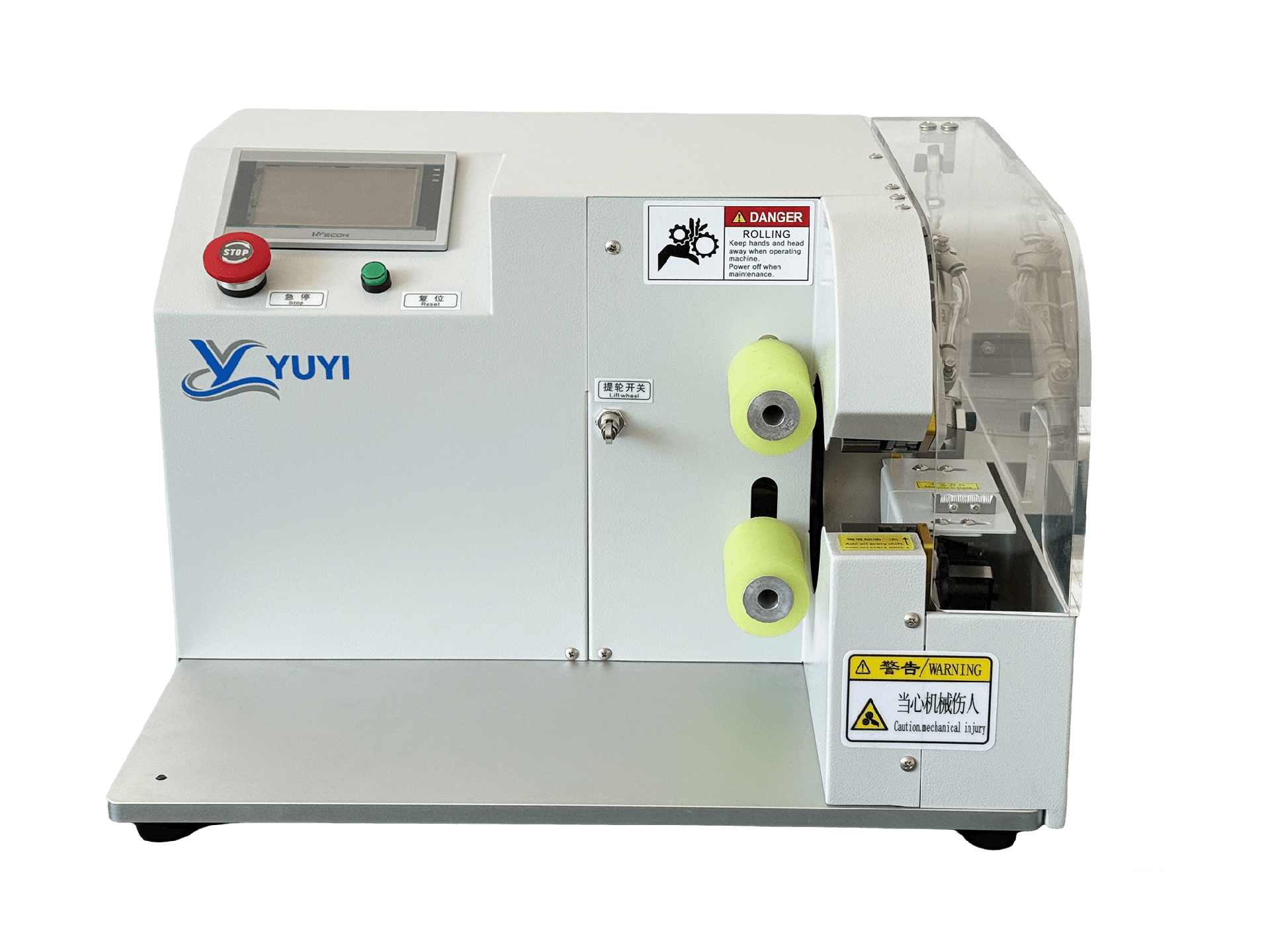

TW-303X Traction Type Tape Winding Machine
PRODUCT DESCRIPTION
This is a basic traction type automatic tape winding machine equipped with a roller traction feeding system. It can automatically and stably feed wires, prevent twisting, and is widely used for full taping, spot taping, and spacing taping of wire harnesses, cables, and power cords. With high speed and uniform winding, it is ideal for mass continuous production.
TECHNICAL SPECIFICATIONS
Model | TW-303X |
Max Wire Diameter | Φ30mm |
Main Motor Speed | 4500 rpm |
Compatible Tape | Flannel tape, Acetate tape, Electrical tape |
Tape Width | 5–25mm (customizable) |
Tape Core ID | Φ37 (standard), Φ32 (optional) |
Max Tape OD | ＜100mm |
Winding Length | Unlimited |
Voltage | 220V / 110V |
Dimensions | 560×500×350mm |
Machine Weight | 45KG |
FEATURES
Roller traction feeding for automatic wire delivery, anti-twisting, stable winding
Three modes: full taping, spot taping, spacing taping; overlap & gap adjustable
High speed 4500 rpm, high efficiency, supports unlimited length winding
Compatible with flannel tape, acetate tape, electrical tape
Compact structure, easy operation, low maintenance, cost-effective
