WS-502P Pneumatic Wire Stripper

PRODUCT DESCRIPTION

The WS-502P is a pneumatic, sensor-actuated wire stripper specifically designed for stripping the insulation from sheathed wire cores. It operates simply by connecting to an air supply, requiring no electrical power. The machine works quickly and smoothly, featuring neither a foot pedal nor a start button. Stripping is automatically initiated merely by lightly touching the wire end against the micro-switch.

Parameters such as cutting depth and strip length are easily adjusted via calibrated fine-tuning knobs, making operation simple and convenient. No blade changes are needed when processing wires of different diameters. The work area is equipped with a safety guard and a scrap insulation collection device, helping to maintain a clean workspace. With a total weight of only 2kg, it is portable and can be used anywhere a compressed air source is available.

FEATURES

• Fully pneumatic design—requires no electrical power, ready to use once connected to an air supply.

• Sensor control ensures precise stripping without the need for a foot pedal.

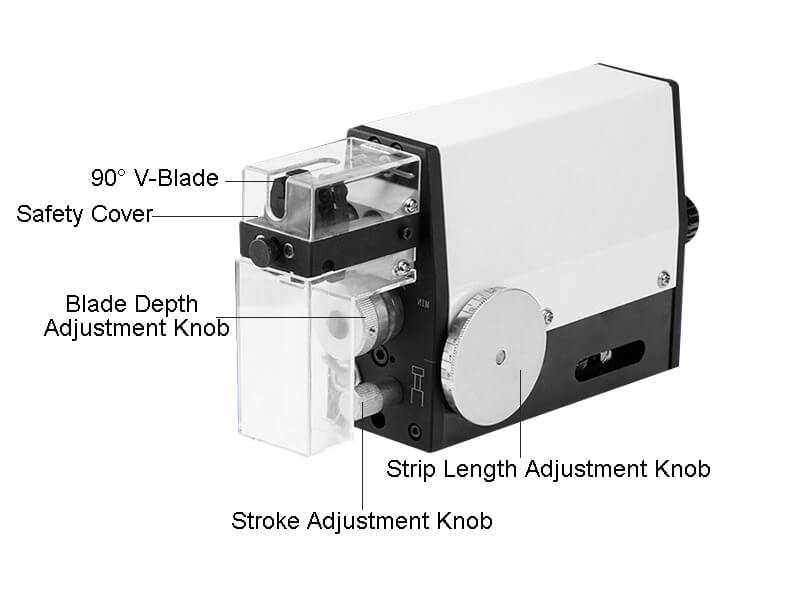

• Strip length, cutting depth, partial strip, and full strip are all adjusted via calibrated knobs. No tools are needed—setup is simple and fast.

• lncorporates a versatile 90° V-blade design, eliminating the need for blade changes when processing different conductors.

APPLICATIONS

Ideal for the precise, fully pneumatic stripping of various wires including electronic wire, PTFE (Teflon) wire, silicone rubber wire, fiberglass wire, single-core wire, and sheathed cable.

TECHNICAL SPECIFICATIONS
