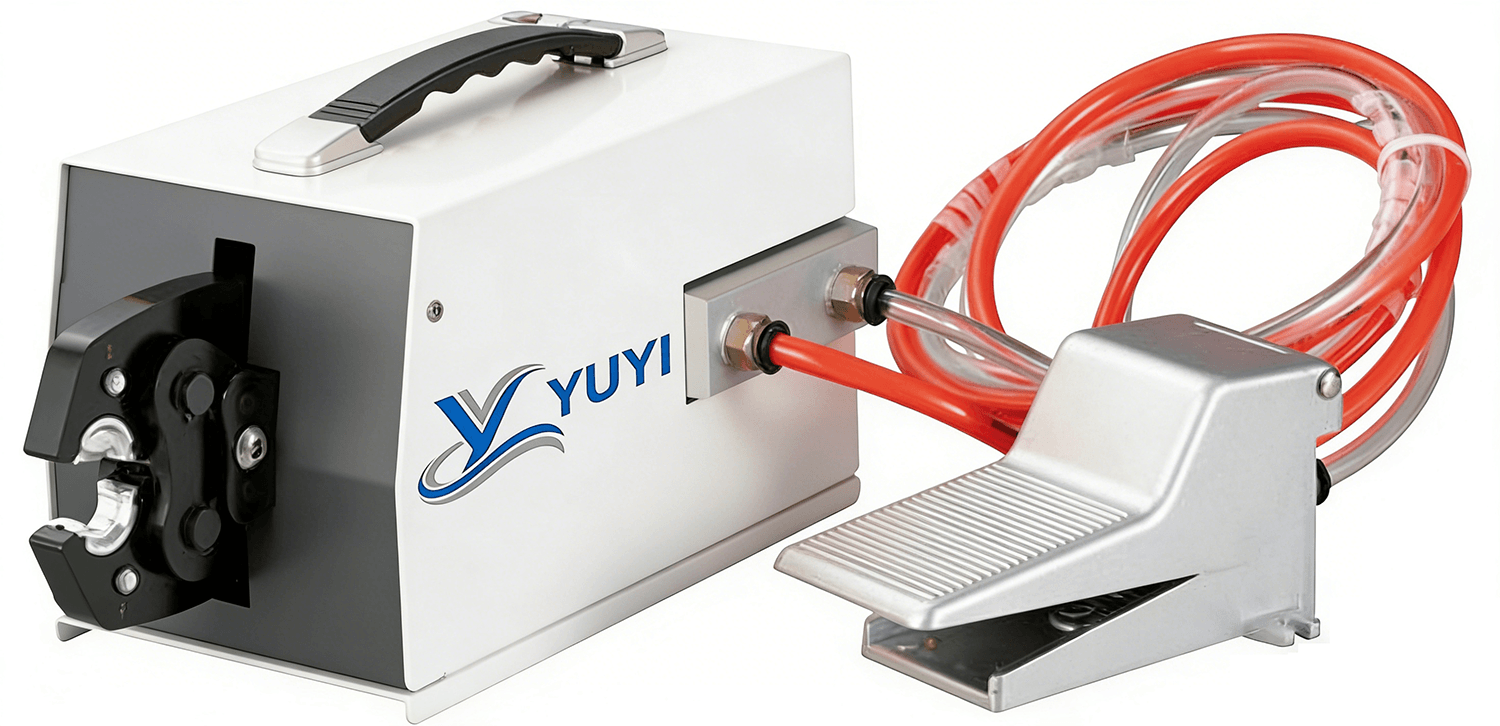

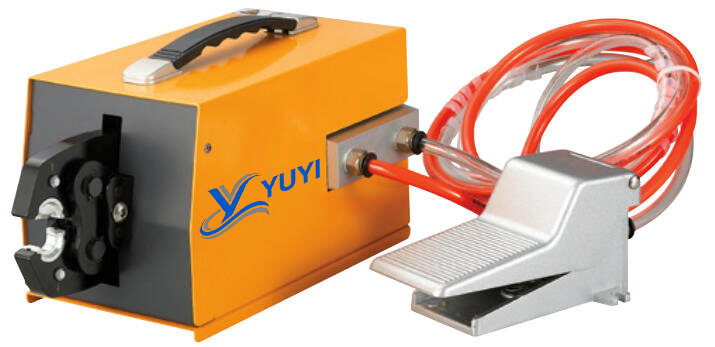

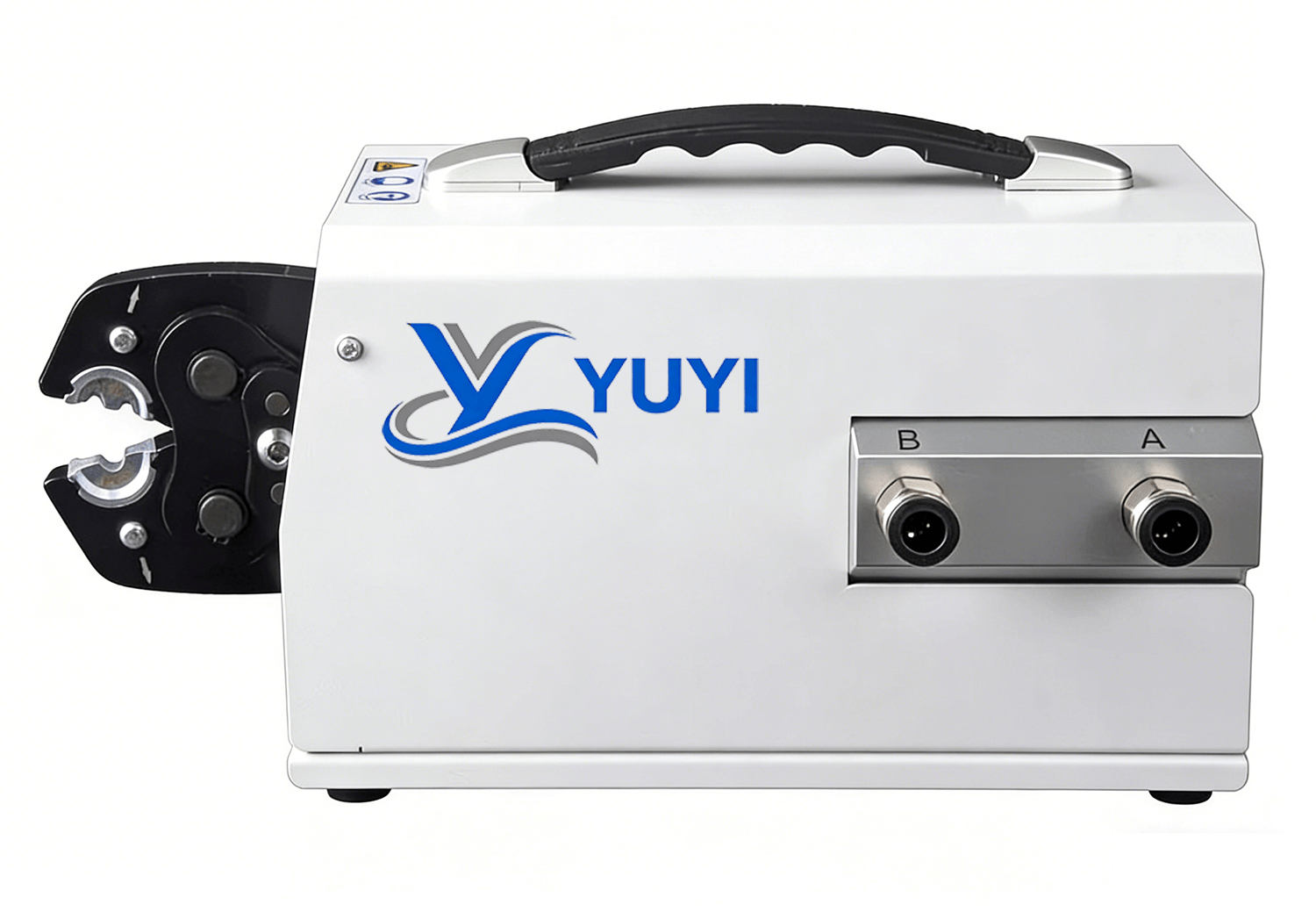

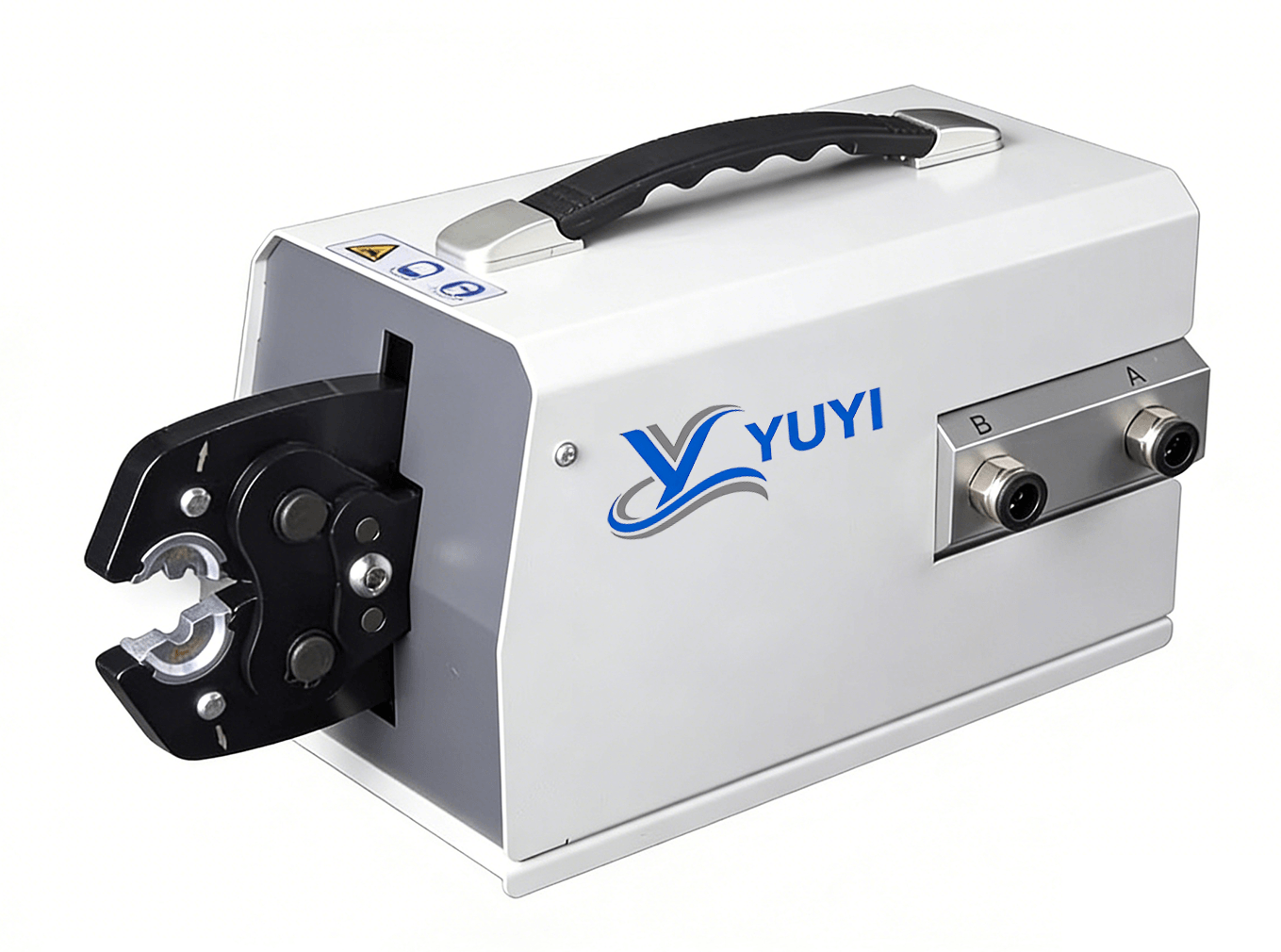

TC-90L Pneumatic Crimping Machine
Interchangeable Die Design-Allows for crimping various terminal types.Foot Pedal Control-Ideal for medium-volume terminal production.More Reliable, Stable, and Efficient than manual crimping tools.Portable and Lightweight design for easy operation and movement.
TC-90L Pneumatic Crimping Machine
PRODUCT DESCRIPTION

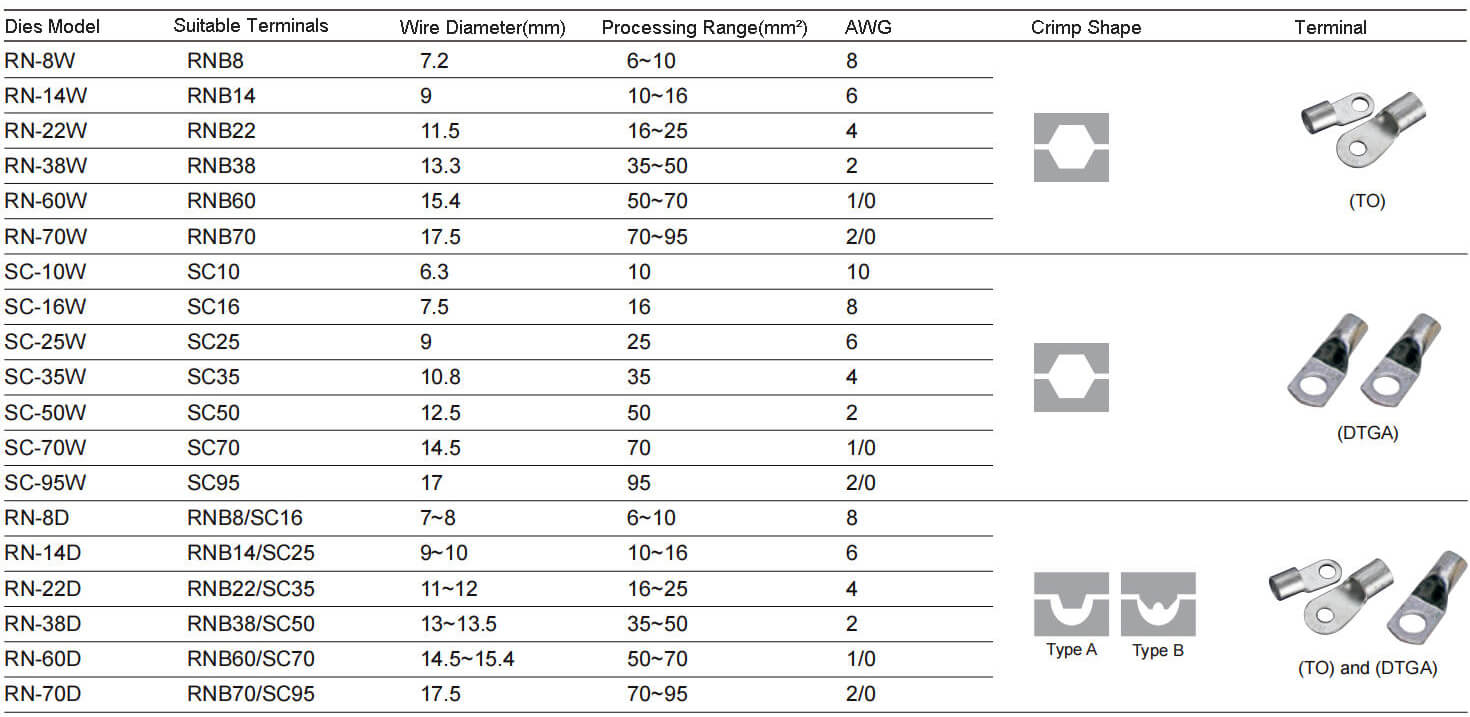

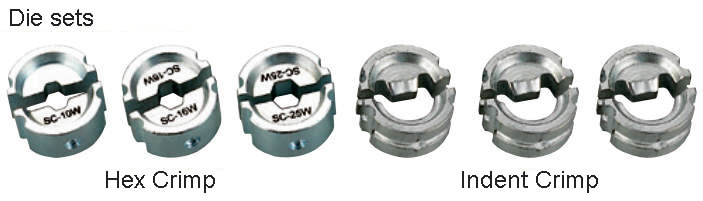

Interchangeable Die Design-Allows for crimping various terminal types.
Foot Pedal Control-Ideal for medium-volume terminal production.
More Reliable, Stable, and Efficient than manual crimping tools.
Portable and Lightweight design for easy operation and movement.
TECHNICAL SPECIFICATIONS
Model | TC-90L |
Crimping range | 6-95mm² |
Air pressure range | 0.5-0.8MPa |
Output | 6.0T |
Overall dimension | 330x150x160mm |
Weight | 11kg |
