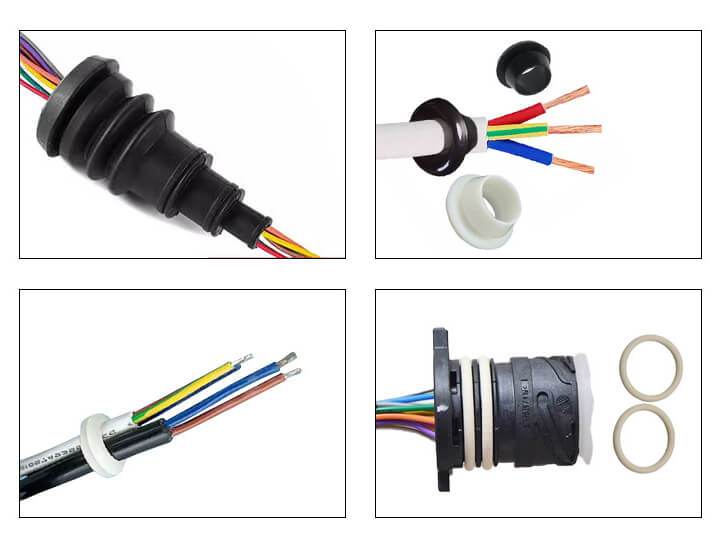

HY-GEK100 Series pneumatic wire grommet expander is professionally used to uniformly and non-destructively expand the inner hole of rubber grommets, eyelets, etc., allowing wires, cables, or hoses to pass through easily.
HY-GEK100 Series Pneumatic Grommet Expander
PRODUCT DESCRIPTION

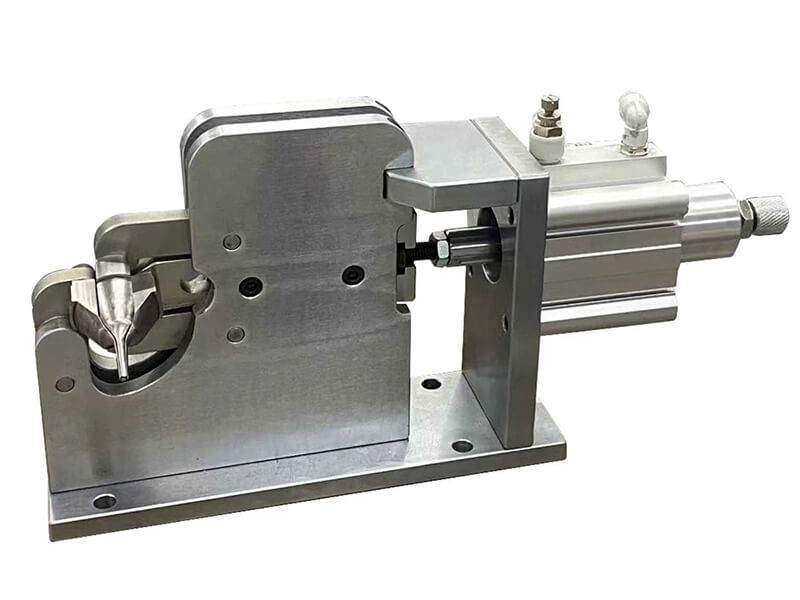

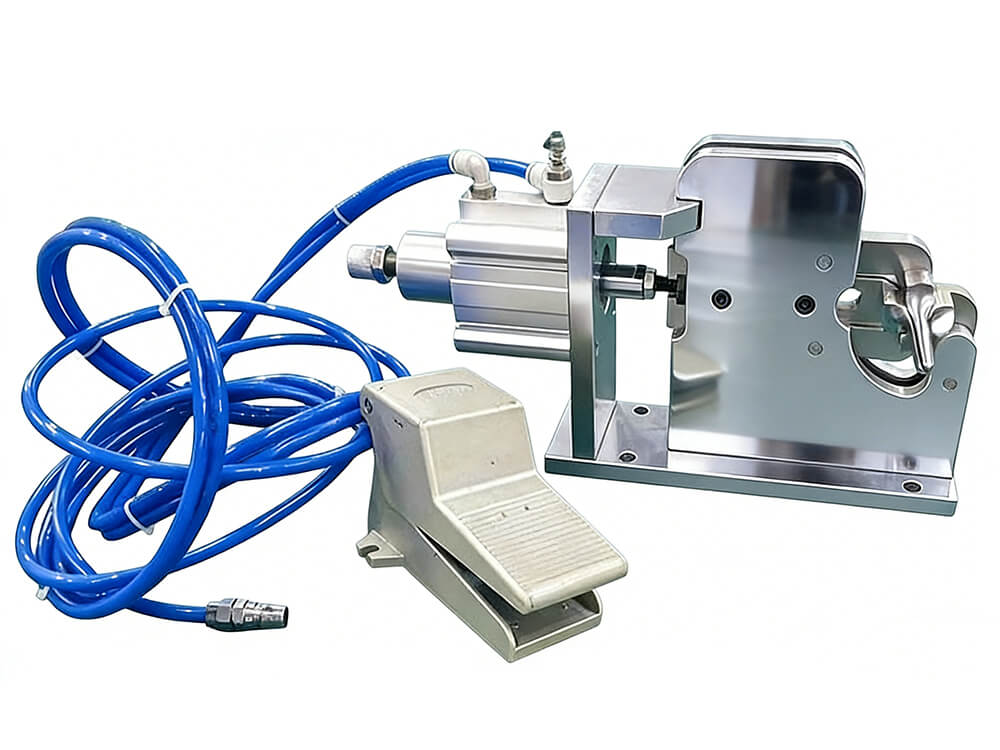

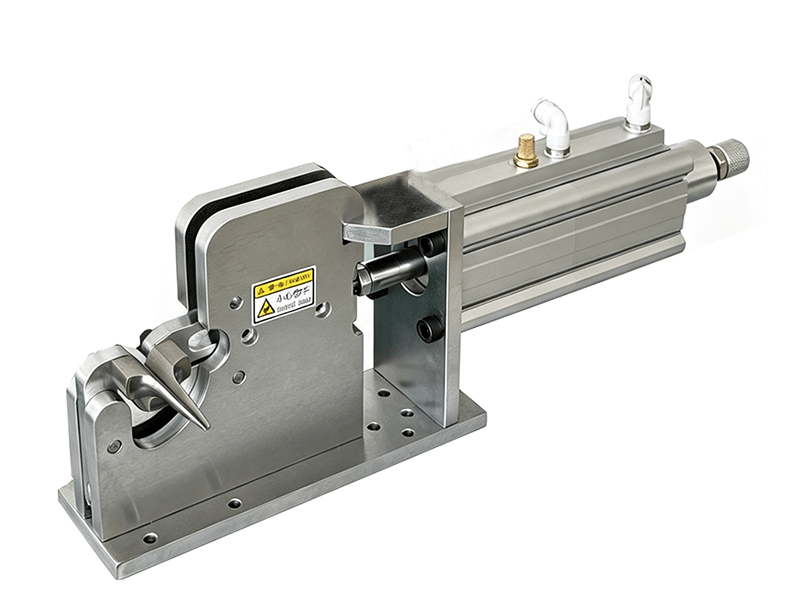

The HY-GEK100 Series pneumatic grommet expander is professionally used to uniformly and non-destructively expand the inner hole of rubber grommets, eyelets, etc., allowing wires, cables, or hoses to pass through easily. HY-GEK100 series expander has a maximum expansion diameter of 100mm.

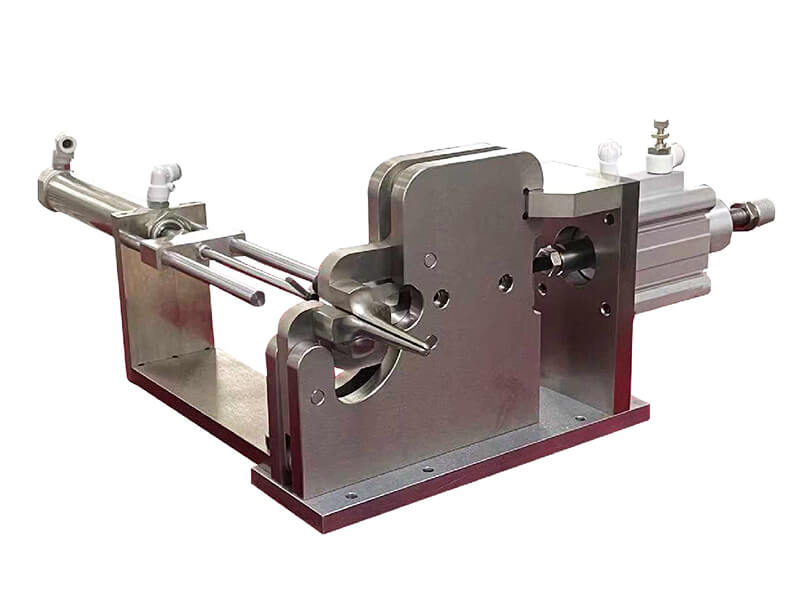

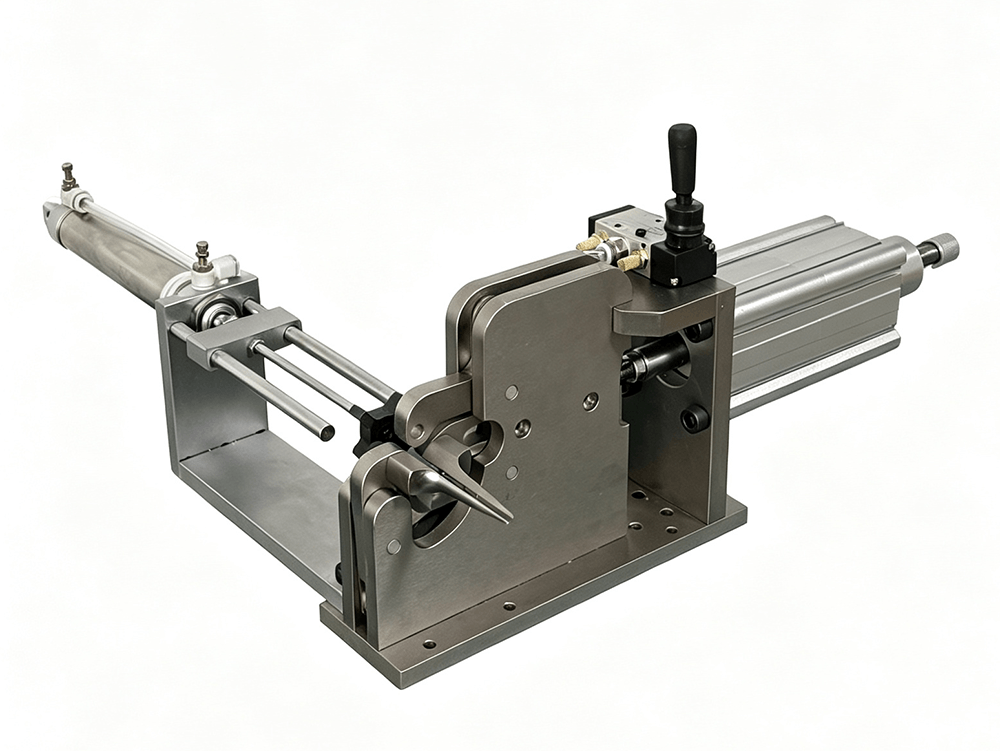

Integrated "Pull-off unit" is a highly valuable upgrade. After expansion and threading, this unit will cleanly eject the grommet assembly from the tool prongs.
Its "pull-off" unit is equipped with a manual control lever for activation.
TECHNICAL SPECIFICATIONS
Model | HY-GEK100 | HY-GEK100P | HY-GEK100S | HY-GEK100SP |
“Pull-off” Unit | No | Yes | No | Yes |
Cylinder | Single cylinder | Single cylinder | Dual-cylinder | Dual-cylinder |
Expansion Diameter | 8-100mm | 8-100mm | 8-100mm | 8-100mm |
Weight | 20kg | 24kg | 22kg | 26kg |
Dimensions | 570x150x245mm | 570x560x245mm | 674x150x245mm | 674x560x245mm |
Air Supply | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa |
