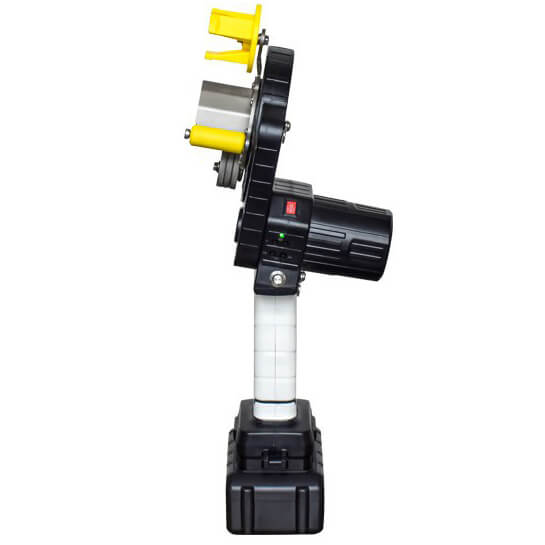

TW-L25 Handheld Tape Wrapping Machine
PRODUCT DESCRIPTION
This is a lithium-battery-powered handheld tape wrapping machine, specifically designed for the efficient and uniform wrapping of various wire harnesses. With simple button controls, it enables quick, even, and tight tape application. The device supports flexible operation modes—it can be used independently as a portable tool or set up in a fixed position with mounting accessories, catering to wire processing needs in diverse scenarios.
TECHNICAL SPECIFICATIONS
Input Voltage | AC220V 50Hz |
Tape Roll Dimensions | Standard inner diameter: 38mm Max. outer diameter: <110mm |
Tape Width | 9-25mm |
Wire Harness Diameter | 3-32mm |
Tape Material | PVC, cloth tape, adhesive tape, felt, etc. |
Wrapping Speed | 2-8 revolutions per second adjustable across 5 gears |
Machine Weight | With battery: 1.8kg / With desktop base: 5kg |
Dimensions | With battery: 100*75*400mm With desktop base: 250*300*400mm |
Battery Endurance | 6000mAh, provides up to 5 hours of continuous operation |
FEATURES

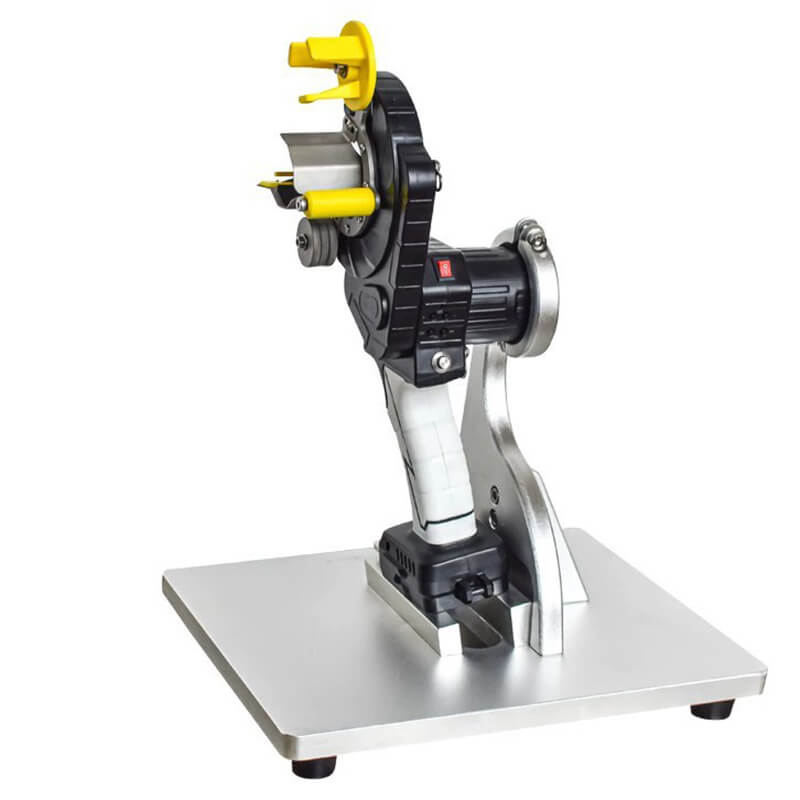

Dual-Use Flexibility & High Efficiency: Powered by a built-in rechargeable lithium battery, it offers genuine cordless mobility for on-the-go operation. Additionally, it can be equipped with an optional balancing suspension arm to significantly reduce operator fatigue during prolonged use, or paired with a desktop mounting base for stable, continuous plugged-in operation.

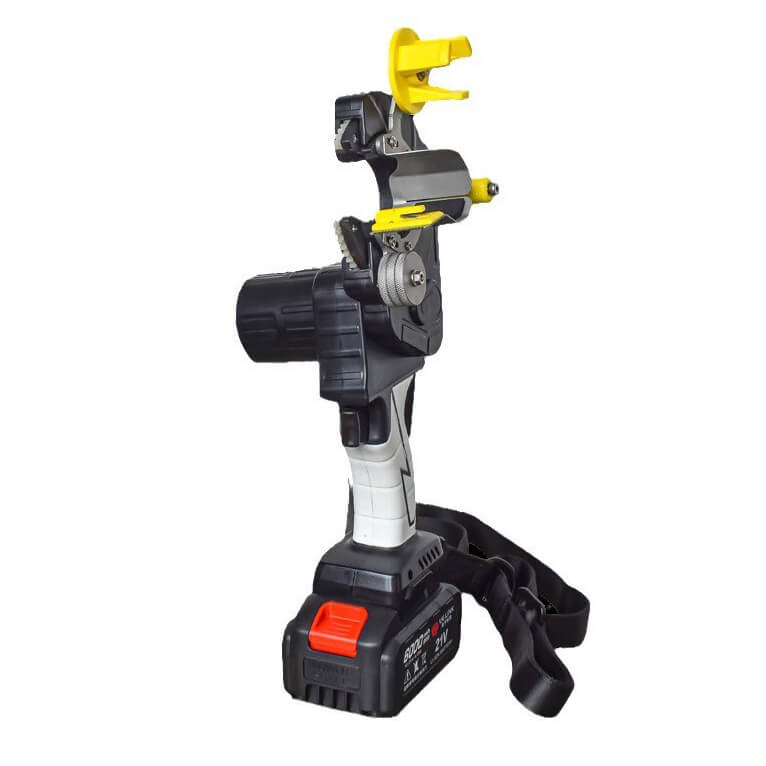

Ergonomic Design, Reduces Fatigue: Meticulously designed based on ergonomic and dynamic principles. For standalone use, it can be paired with a dedicated waist strap, effectively distributing the device's weight and alleviating muscle strain during long working sessions.
Variable Speed & Smooth Wrapping: Features five adjustable speed settings, with a maximum speed of 500 RPM. Users can flexibly set the rotation speed according to different wire harness materials and wrapping requirements, ensuring a smooth, even wrapping process that enhances both work efficiency and finished product quality.
Safe & Reliable Operation: Equipped with a retractable/hidden cutting blade for safety when not in use, and an emergency brake mechanism that allows for immediate stoppage in case of unexpected situations. This dual protection ensures safe operation.
Wide Compatibility: Suitable for use with a variety of common tapes, including but not limited to: PVC tape, cloth tape, velvet tape, plush tape, acetate cloth tape, masking tape, aluminum foil tape, and transparent adhesive tape.
TYPTICAL APPLICATION

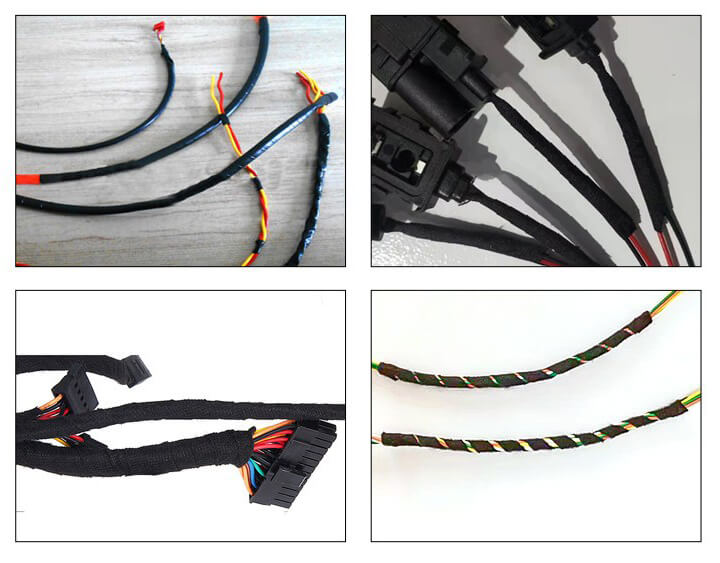

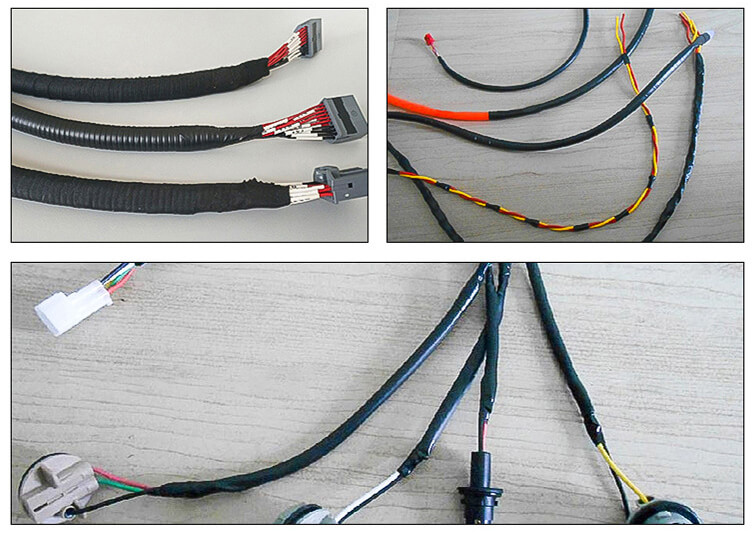

Ideal for insulation protection, bundling, fixing, and marking tasks in fields such as automotive wiring harnesses, appliance wiring, network communication cables, and internal wiring of electronic products.
