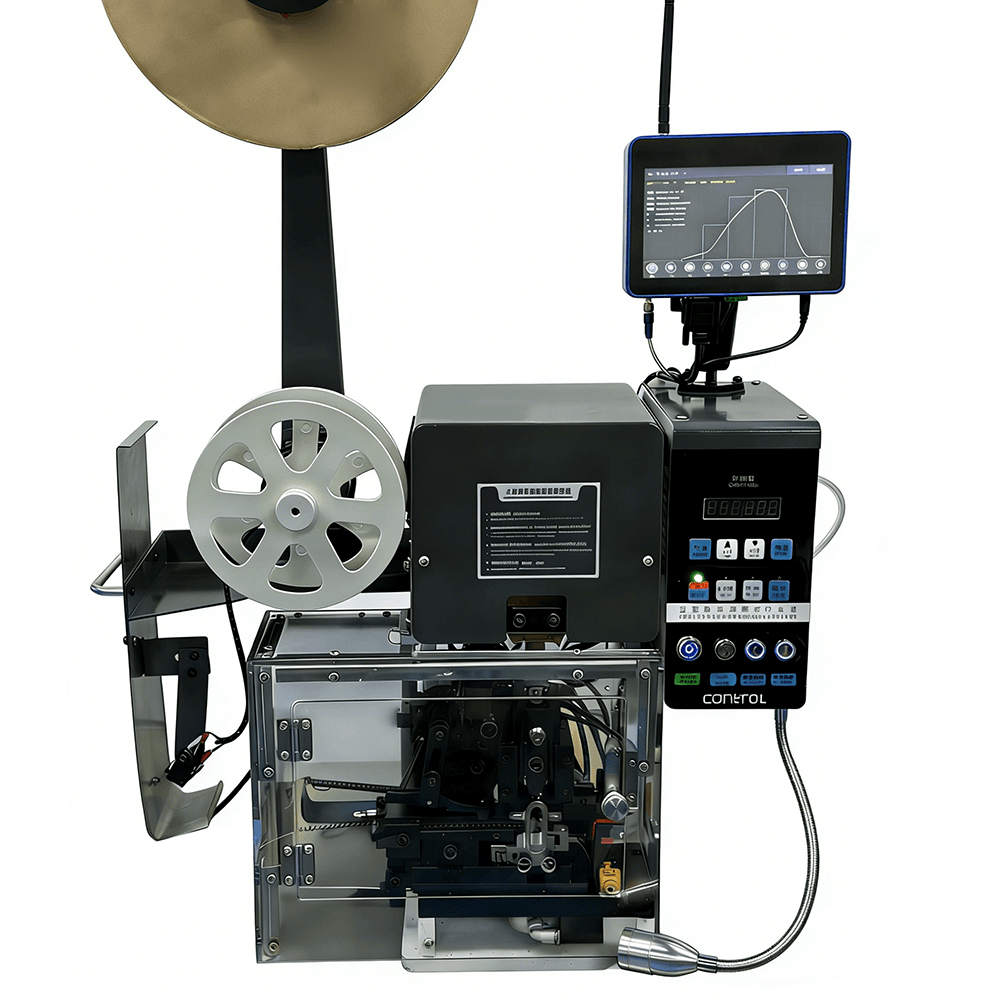

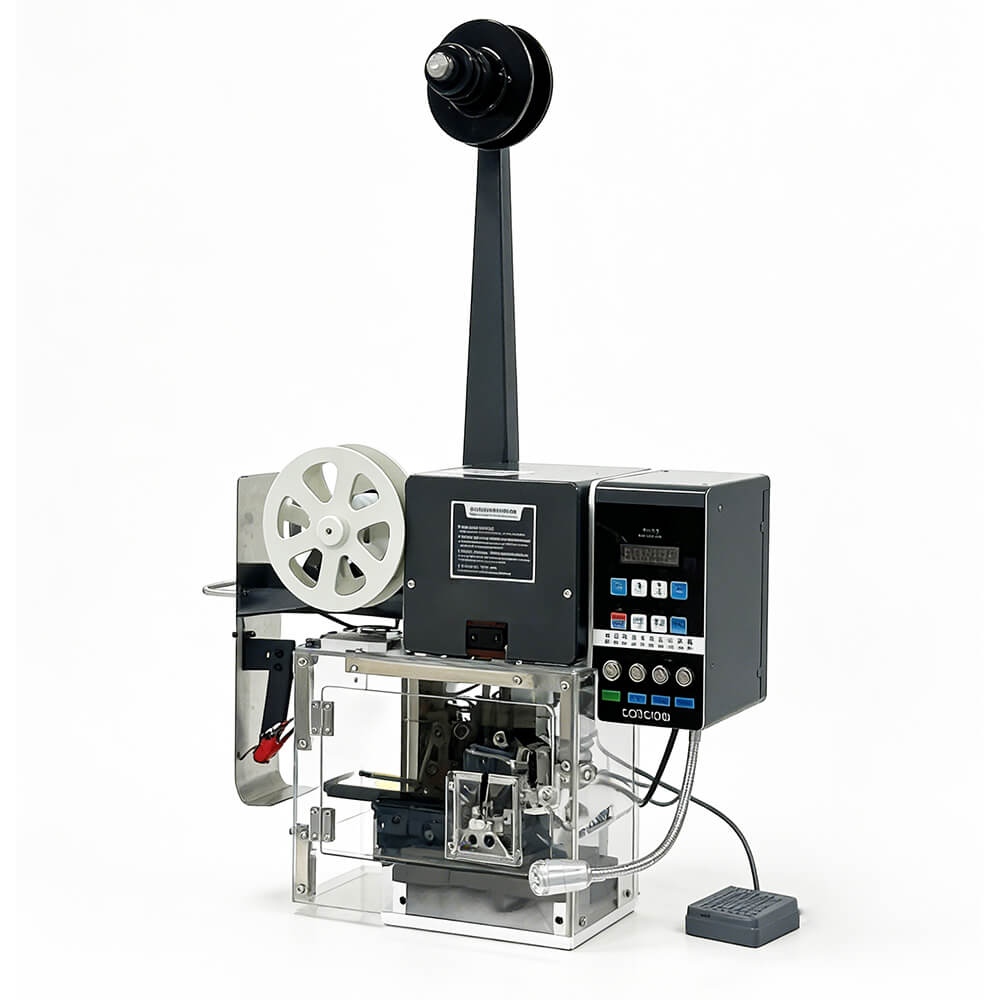

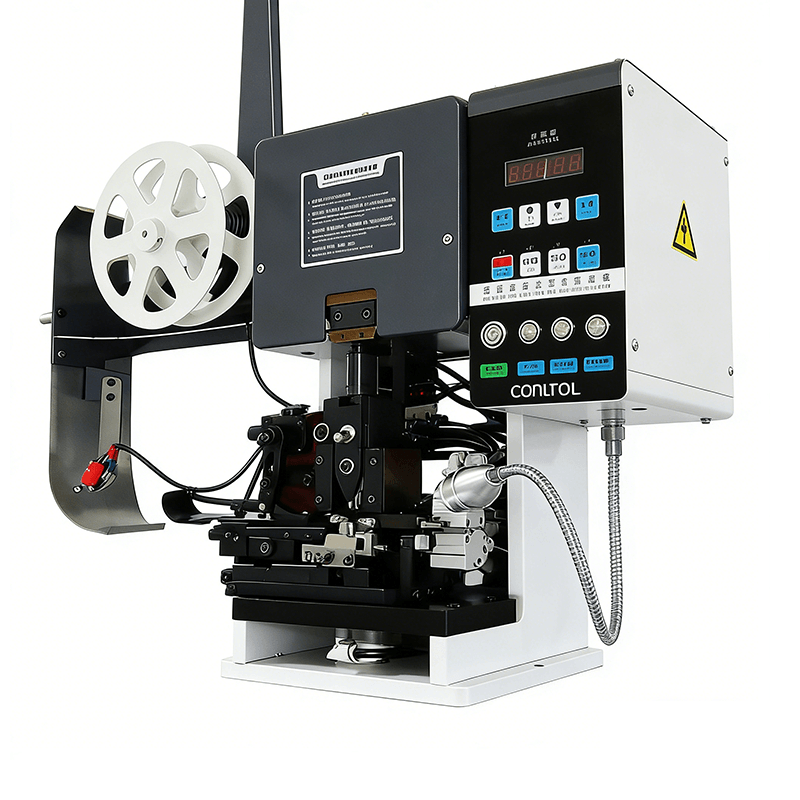

TC-15BD Wire Stripping & Terminal Crimping Machine

PRODUCT DESCRIPTION

The TC-15BD is a high-performance horizontal integrated machine designed to enhance wire harness processing efficiency. Utilizing advanced electronic control technology, it integrates a high-precision control module and transmission mechanism to complete stripping and crimping in one operation. This effectively reduces processing steps, lowers operational difficulty, and significantly improves productivity. It performs exceptionally well even with complex wires such as ultra-fine wires and multi-core sheathed cables.

PRODUCT FEATURES

l Efficient & Precise, One-Step Process: Integrates stripping and crimping functions, completing end stripping and terminal crimping in a single feed, streamlining the process and multiplying efficiency.

l Wide Applicability, Remarkable Results: Particularly effective for AWG32#-18# ultra-fine wires and multi-core sheathed cables, meeting precision wire harness processing requirements.

l Pneumatic Stripping, Fast & Stable: Stripping action is driven by a pneumatic cylinder, ensuring high speed and accurate positioning for consistent stripping quality.

l Vacuum Waste Collection: Employs a vacuum suction system to collect stripped insulation waste, keeping the workspace clean and reducing manual cleanup time.

l High-Precision Crimping: The crimping mechanism utilizes gear reduction transmission, delivering precise and stable pressure for reliable terminal crimping.

l Adjustable Speed, User-Friendly: The machine's operating speed can be adjusted via an air valve to accommodate operators of different skill levels, making it easy for beginners to master.

l
Low Noise & Durable: Features low operating noise and energy consumption, with a robust construction suitable for long-term continuous production.

TECHNICAL SPECIFICATIONS
