TC-20T Frequency-Conversion Terminal Crimping Machine is a cost-effective and versatile crimping machine. Driven by a frequency-conversion motor, it operates with significantly lower noise than traditional models. It delivers 2.0 tons of pressure with a 30mm stroke, suitable for crimping most standard terminals.

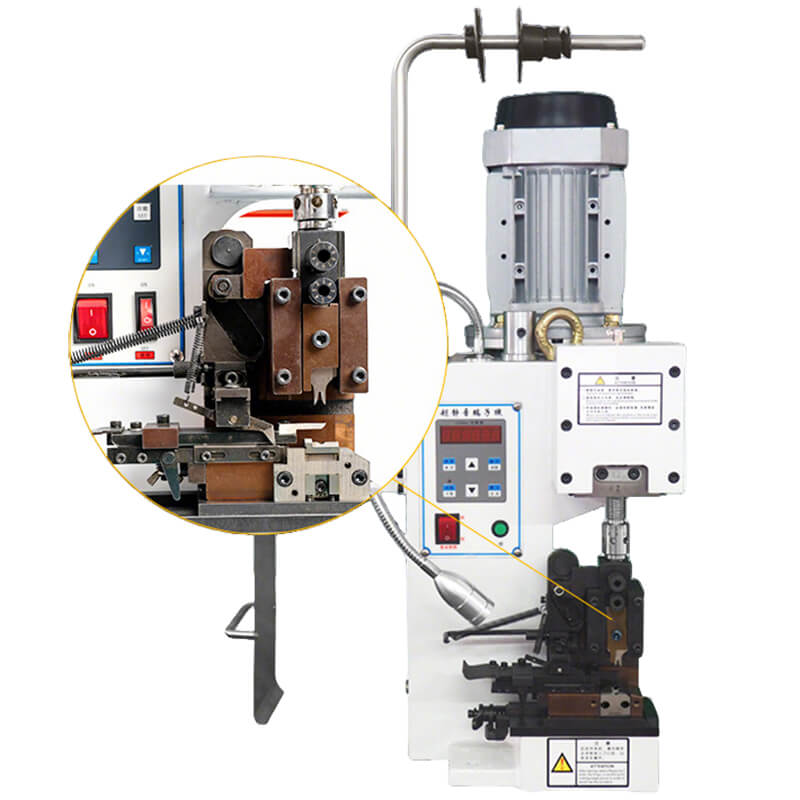

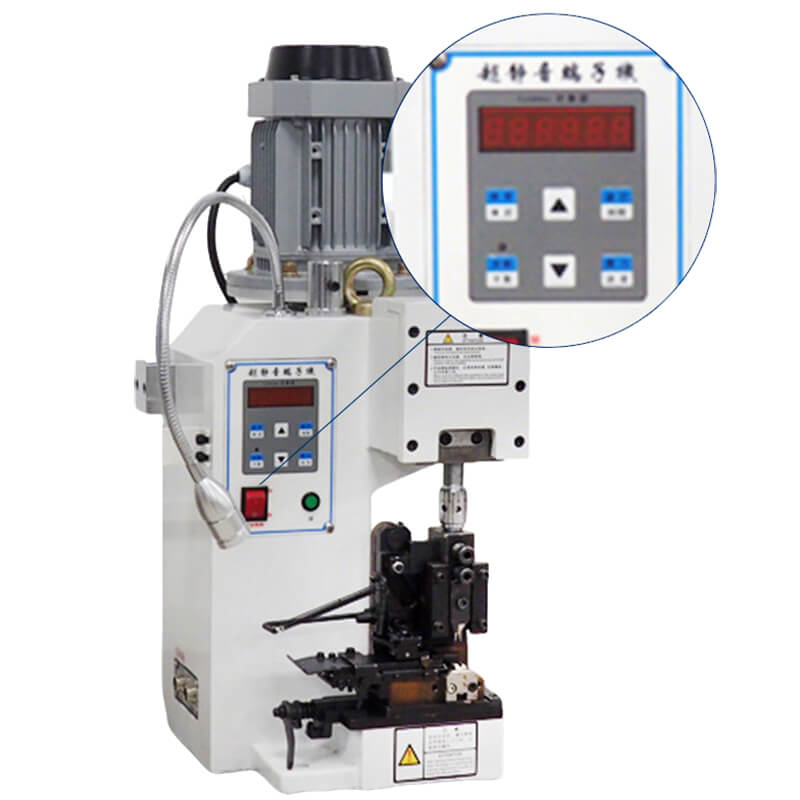

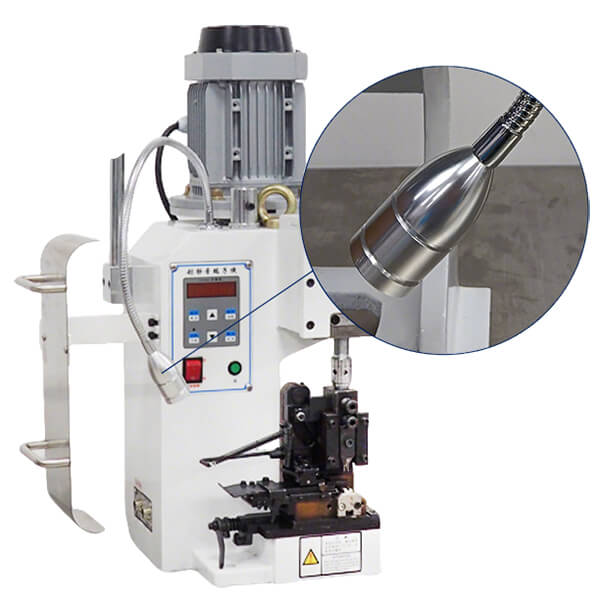

TC-20T Terminal Crimping Machine
PRODUCT DESCRIPTION
TC-20T Frequency-Conversion Terminal Crimping Machine is a cost-effective and versatile crimping machine. Driven by a frequency-conversion motor, it operates with significantly lower noise than traditional models. It delivers 2.0 tons of pressure with a 30mm stroke, suitable for crimping most standard terminals. The machine features a compact design with a low power consumption of 0.75Kw and a weight of 80 kg, making it energy-efficient and easy to integrate into workshop layouts, ideal for stable, medium-volume production.
TECHNICAL SPECIFICATIONS
Model | TC-20T |
Crimping Method | Frequency-conversion motor |
Output | 2.0T |
Press Stroke | 30mm |
Power Supply | AC 220V 50/60Hz |
Power | 0.75KW |
Frequency converter | 0.75KW |
Dimensions | L330*W320*H760mm |
Weight | 80kg |
