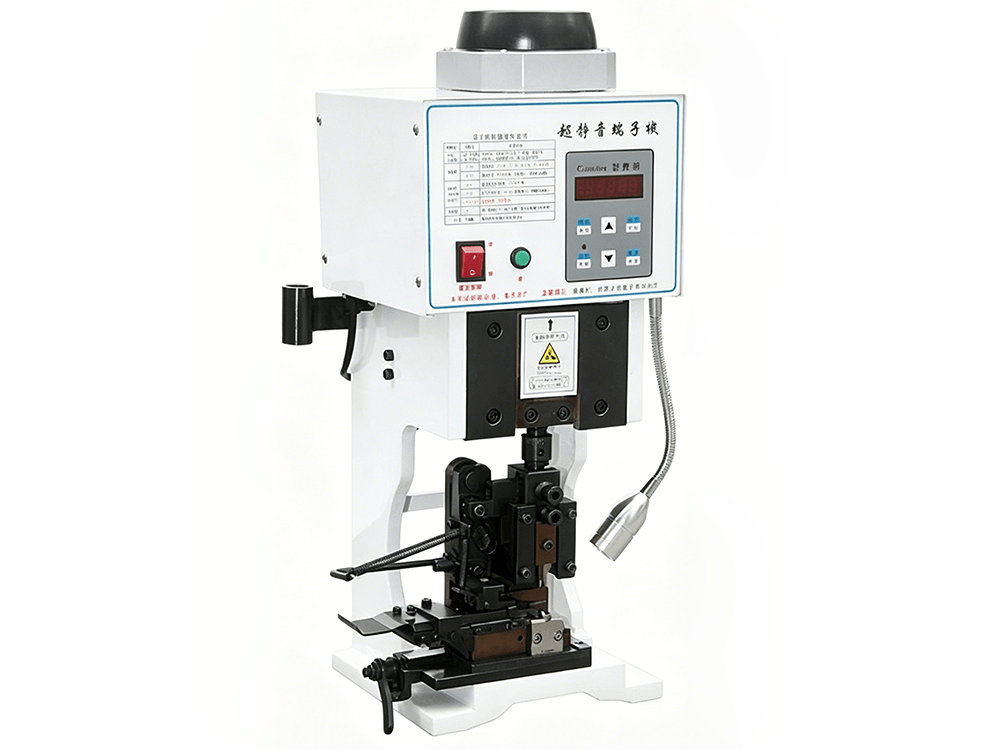

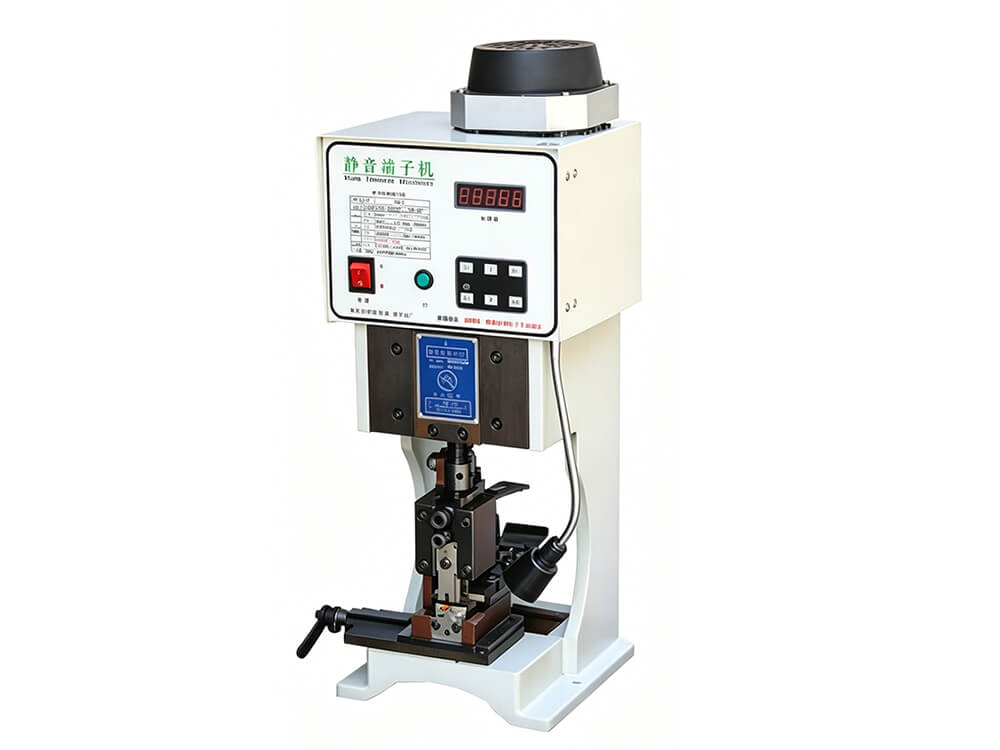

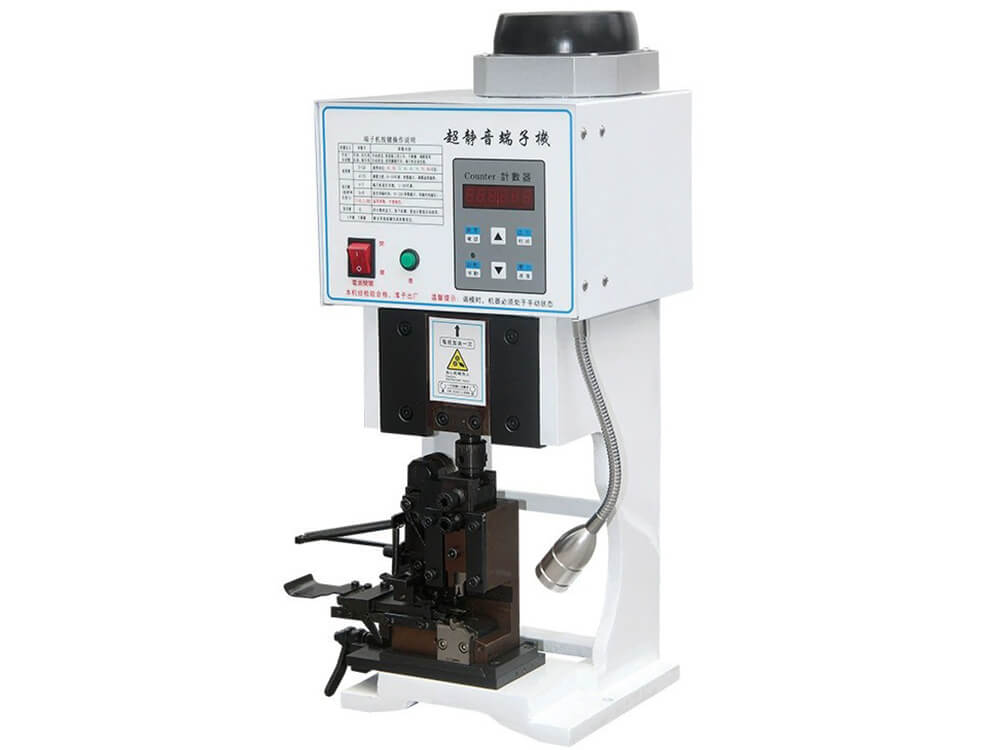

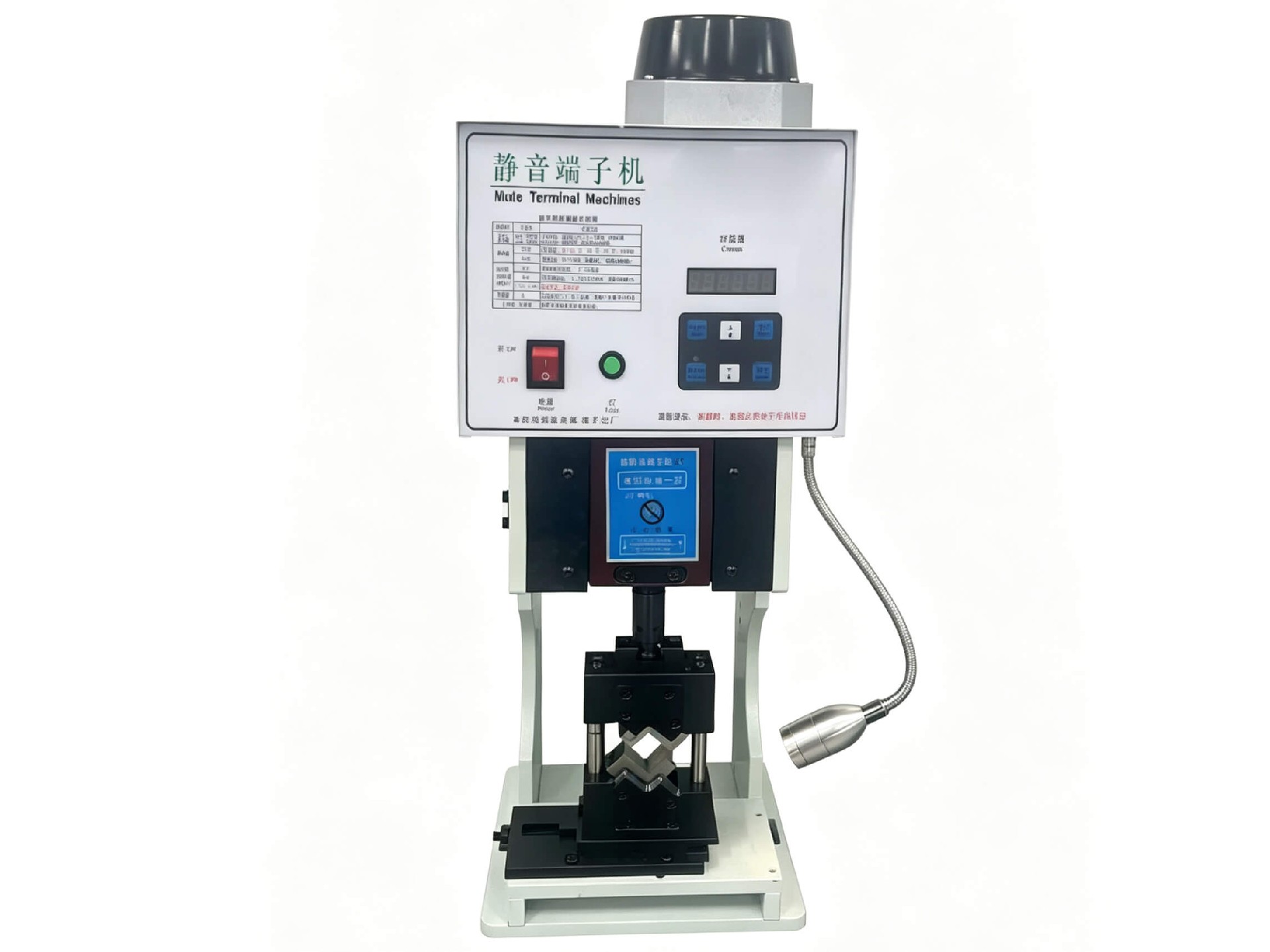

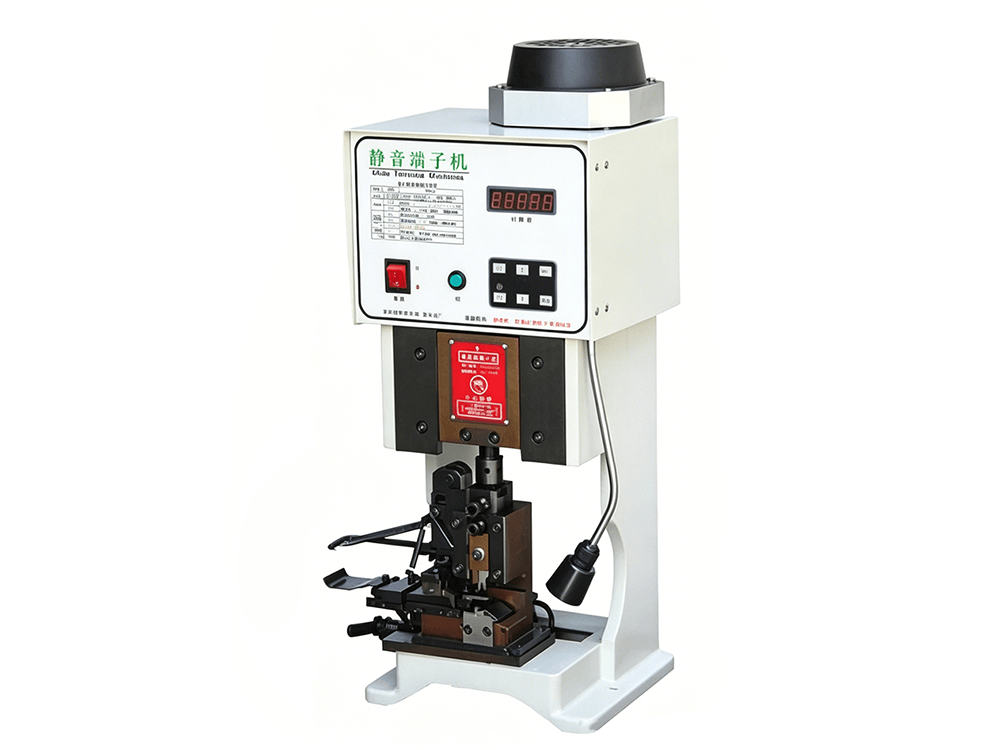

TC-20TM Super Mute Terminal Crimping Machine super mute terminal crimping machines are high-efficiency, low-noise crimping solutions designed for wire harness processing applications.
TC-20TM Super Mute Terminal Crimping Machine
PRODUCT DESCRIPTION
The TC Series super mute terminal crimping machines are high-efficiency, low-noise crimping solutions designed for wire harness processing applications.
With variable frequency drive technology and modular design, they are compatible with a wide range of terminals and dies, delivering precise and reliable crimping performance for industries such as electronics, home appliances, and automotive wiring harnesses.
PRODUCT FEATURES
Low-Noise Operation: Equipped with a variable frequency motor, the machine operates at low noise levels, reducing workplace noise pollution.
Quick Applicator Change System: Standardized cartridge-style die interface supports fast replacement of different types of dies without complex adjustments.
Stable & Precise Crimping: Stable voltage supply ensures fast, high-precision crimping.
Compact & User-Friendly Design: The lightweight, compact body allows easy movement and deployment across different workstations.
TECHNICAL SPECIFICATIONS
Item | TC-15TM (1.5T) | TC-20TM (2.0T ) |
Crimping Force | 1.5 Ton | 2.0 Ton |
Drive Type | Variable Frequency Motor | Variable Frequency Motor |
Power Supply | AC220V 50/60Hz | AC220V 50/60Hz |
Motor Power | 0.55kW (550W) | 0.75kW (750W) |
VFD Power | 0.75kW | 0.75kW |
Crimping Stroke | 30mm | 30mm |
Machine Dimensions | 230×260×600mm | 270×265×650mm |
Machine Weight | Approx. 45kg | Approx. 65kg |
APPLICATIONS
l Electronics Industry: Crimping of internal wire harness terminals for home appliances and consumer electronics
l Automotive Industry: Processing of low-voltage wire harness and connector terminals
l Telecom Industry: Crimping of data cables and communication cable terminals
l General Wire Harness Processing: Pre-crimping of various single-core/multi-core wire terminals
