TC-F40V sets stripping and twisting wires, piercing and crimping ferrules as one of the automation equipment. Adopt rotary stripping device to strip wires. Ferrule size range: 0.5,0.75,1.0,1.5,2.5,4.0mm²

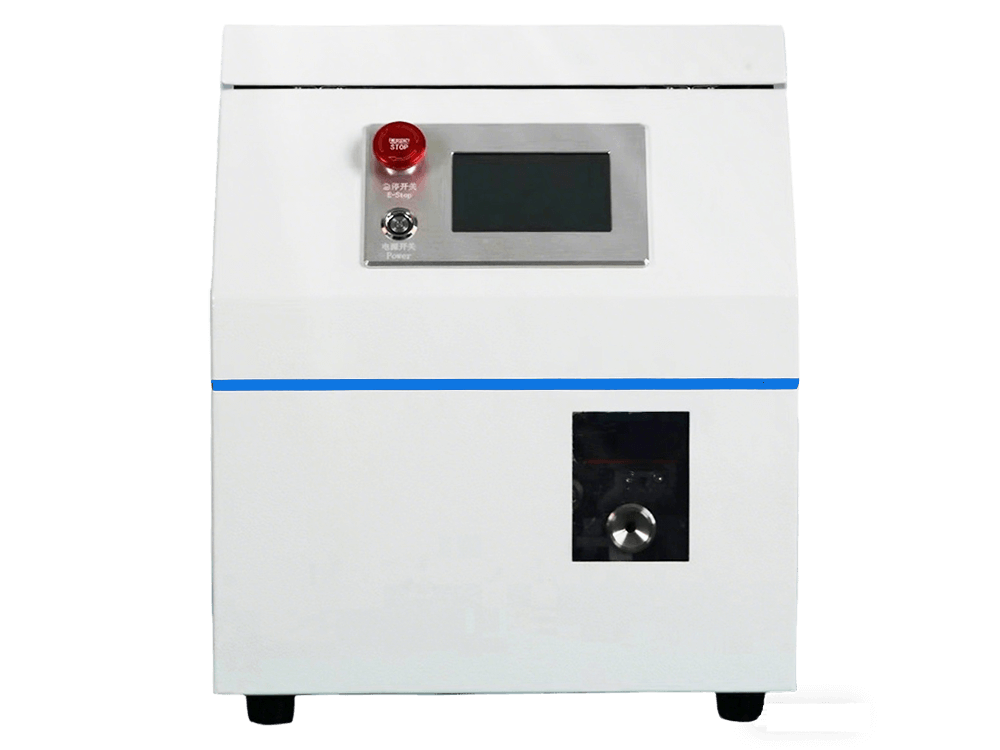

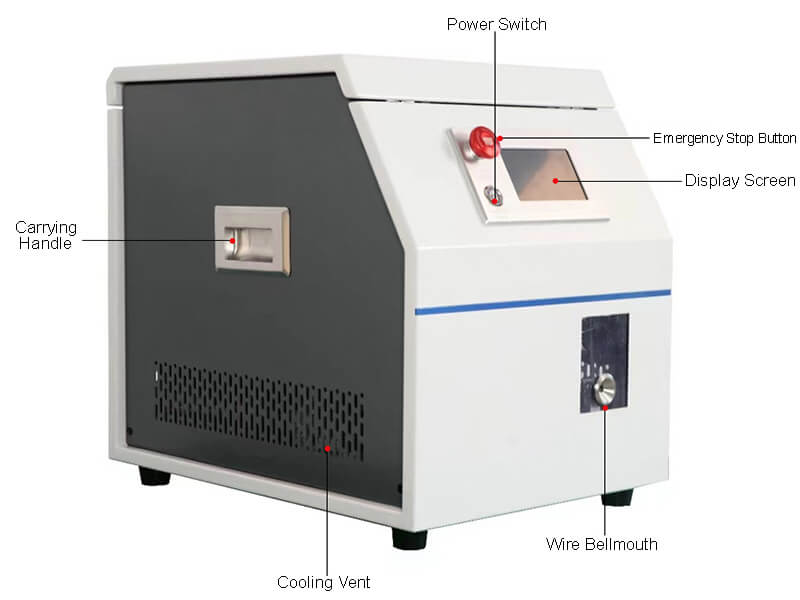

TC-F40V Wire Stripping and Ferrule Crimping Machine
PRODUCT DESCRIPTION
TC-F40V sets stripping and twisting wires, piercing and crimping ferrules as one of the automation equipment. Adopt rotary stripping device to strip wires.
1. Combination of pneumatic and electric.
2. Overall closed appearance design.
3. The machine has strong flexibility and safe operation.
4. Compact mechanical structure.
5. Automatic trigger start, fast and convenient.
6. High production efficiency.
TECHNICAL SPECIFICATIONS
Model | TC-F40S |
Dimensions | 350x450x400MM |
Weight | 40 kg |
Power supply | 220V 50/60Hz |
Air supply | 0.6-0.8Mpa |

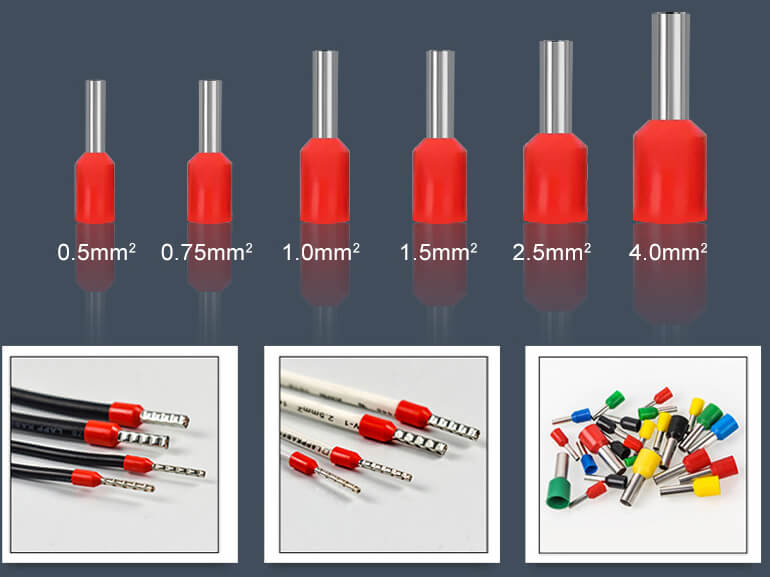

Ferrule size range | 0.5,0.75,1.0,1.5,2.5,4.0mm² |
Wire stripping length | ≤16 mm |
Wire total length | ≥40mm |
Detection function | Terminal detection |
Parts replacement | Manual replacement of related Parts |
